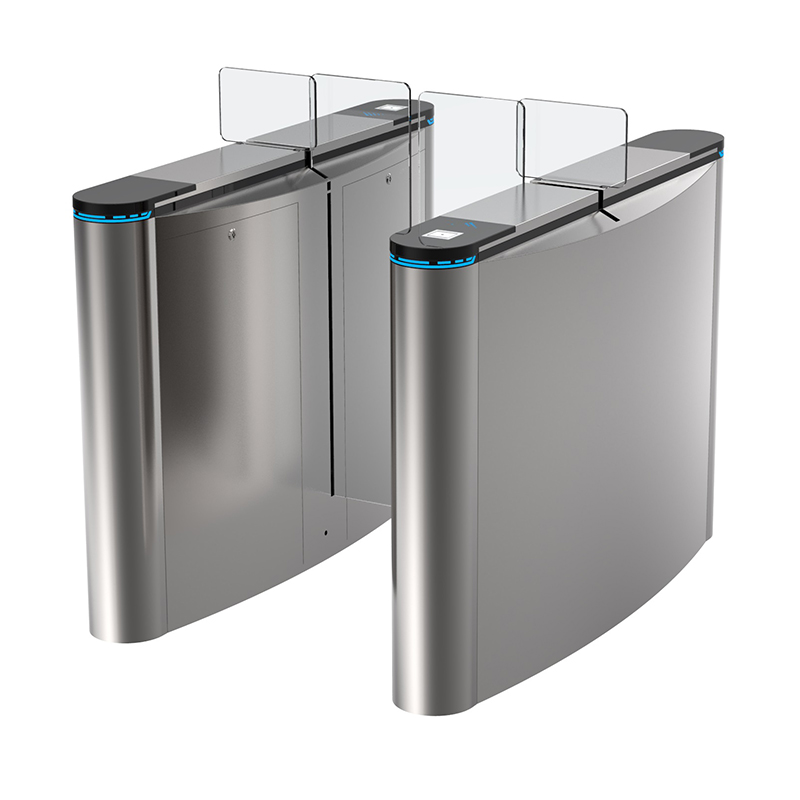

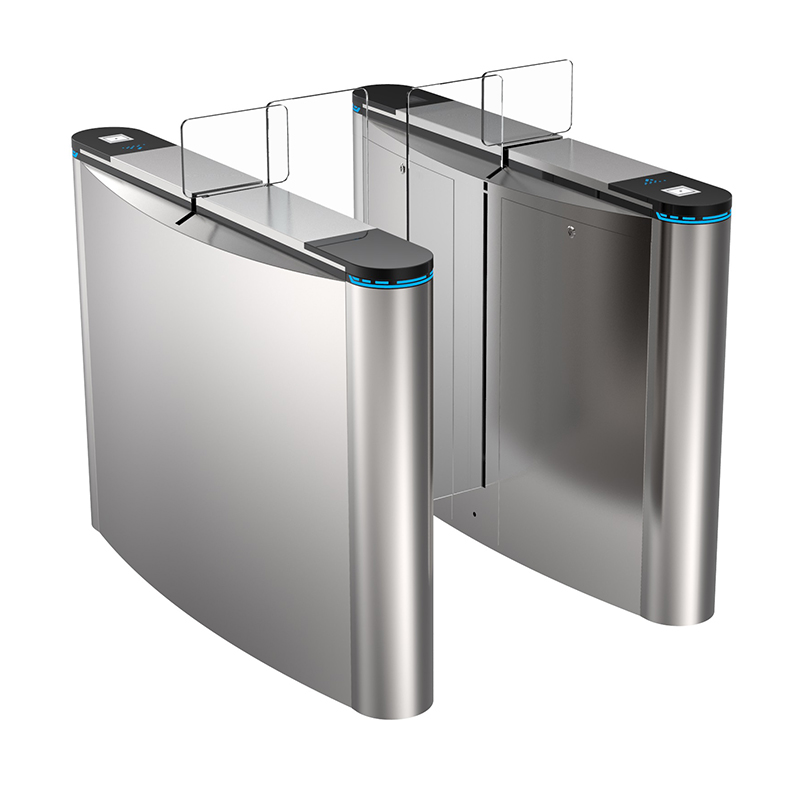

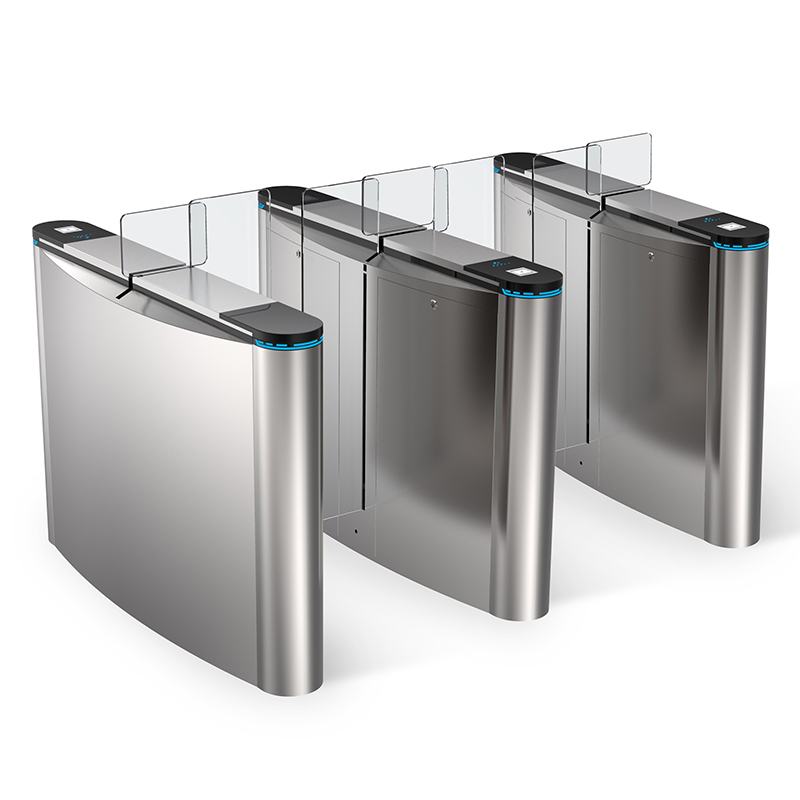

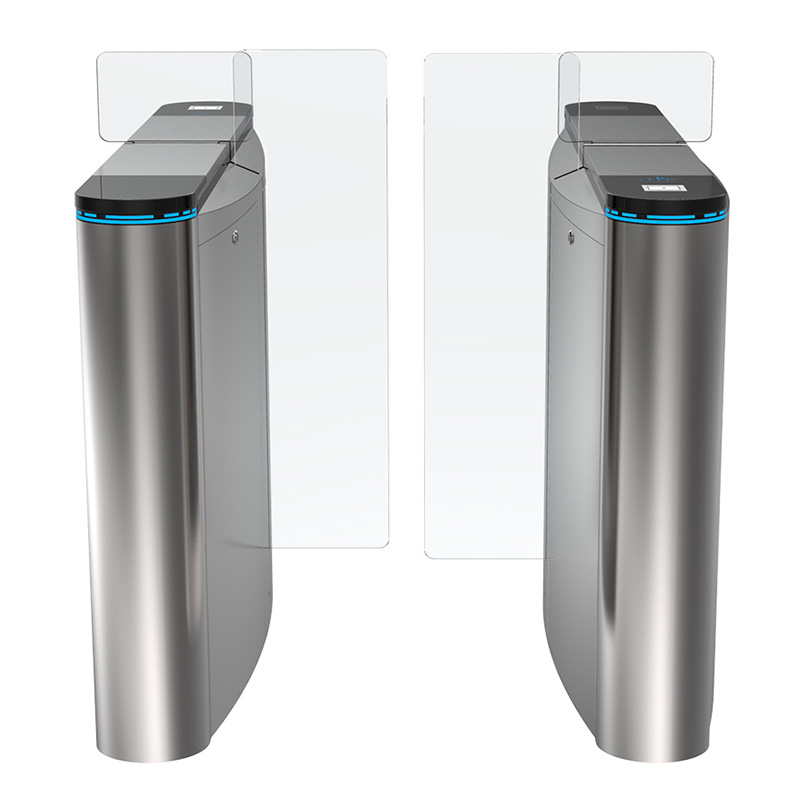

FULL HEIGHT OPTICAL BARRIER TURNSTILES MT247
We can provide OEM and ODM services. We have experienced designers who can complete deep customization according to any of your needs. We will provide a series of materials such as 3D renderings, dimensional drawings, etc. as soon as possible.
All of our products carry a 2-year warranty and durable maintenance and repair support. We also provide biometric devices, such as fingerprint scanners, and face recognition cameras. RFID card reader, QR code scanner. If you need to integrate these devices on the turnstile gate or have any questions, please request a quote.
We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layouts and drawings, as well as installation drawings. Let you have no worries about installation. Please download our corresponding PDF file for specific dimensions and installation dimensions.
Technical Parameter:
1. Size: 1420*340*1000 mm (can be customized)
2. Lane width: Lane width: 600 mm (standard) 900 mm( Handicapped)
3. Passing speed: 40 person/min
4. Power supply: 110V/220V 50/60Hz
5. Brushed Driving Motor: 30 W
6. Gate Open Signal: Dry Contact/ Relay
7. Driving Motor: DC24V
9. Mechanism: DC brushed motor mechanism
10. Arm height: 1200 mm (can be customized)
11. Arms material: acrylic/tempered glass
12. With 5 pairs of sensors
13. Casing Material: 304 stainless steel and black acrylic
14. Reliability of the mechanism: 3 million-5 million, no-fault
15. Lane width 900 mm can be customized
16. Weight: 70 kg/pcs
17. Working Direction: Bidirectional/Single directional
18. Emergency situation: open automatically when the electricity is cut off with a capacitor
19. Humidity: ≤90％
20. Working temperature: -20℃～60℃
21. Communication distance: ≤1200 m
22. Communication interface: RS485
23. Feature: IC/ID reader, Barcode Reader, Face recognition, Fingerprint, other access control equipment, UPS, etc
24. Time needed for opening: 0.2 s
25. Working Environment: Indoors
26. Application range: Community, office building, School, Place of the resort, government facility, etc
We can provide the entire security access control solution. If you have your own access control system, you can directly use our turnstile gate. If you don’t have one, we also provide a complete security access control solution. Please refer to the video below for details.
