We can provide OEM and ODM services. We have experienced designers who can complete deep customization according to any of your needs. We will provide a series of materials such as 3D renderings, dimensional drawings, etc. as soon as possible.

All of our products carry a 2-year warranty and durable maintenance and repair support. We also provide biometric devices, such as fingerprint scanners, and face recognition cameras. RFID card reader, QR code scanner. If you need to integrate these devices on the automatic flap gate turnstile or have any questions, please request a quote.

We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layouts and drawings, as well as installation drawings. Let you have no worries about installation. Please download our corresponding PDF file for specific dimensions and installation dimensions.

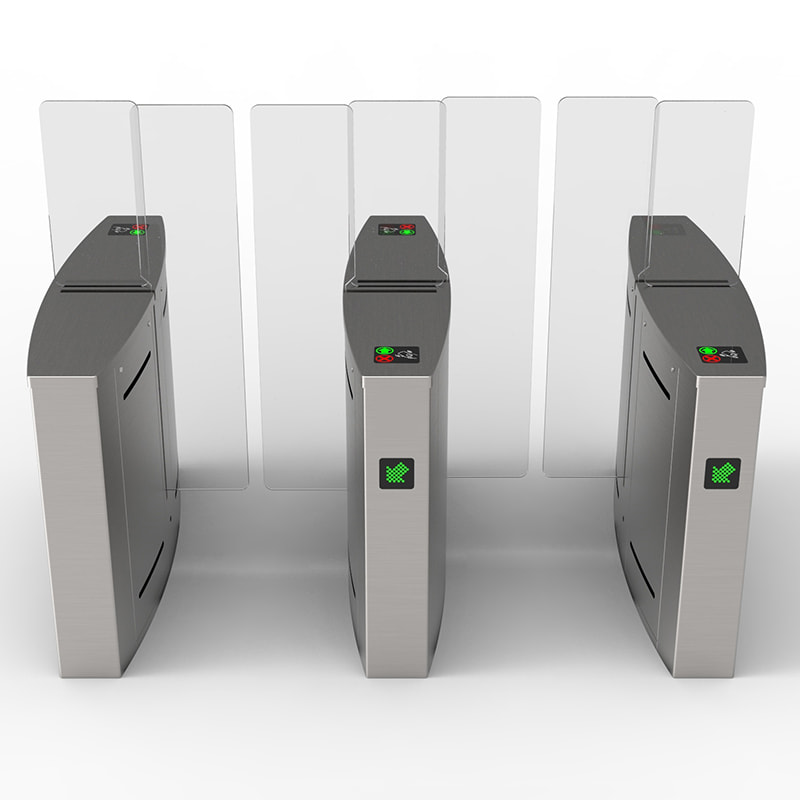

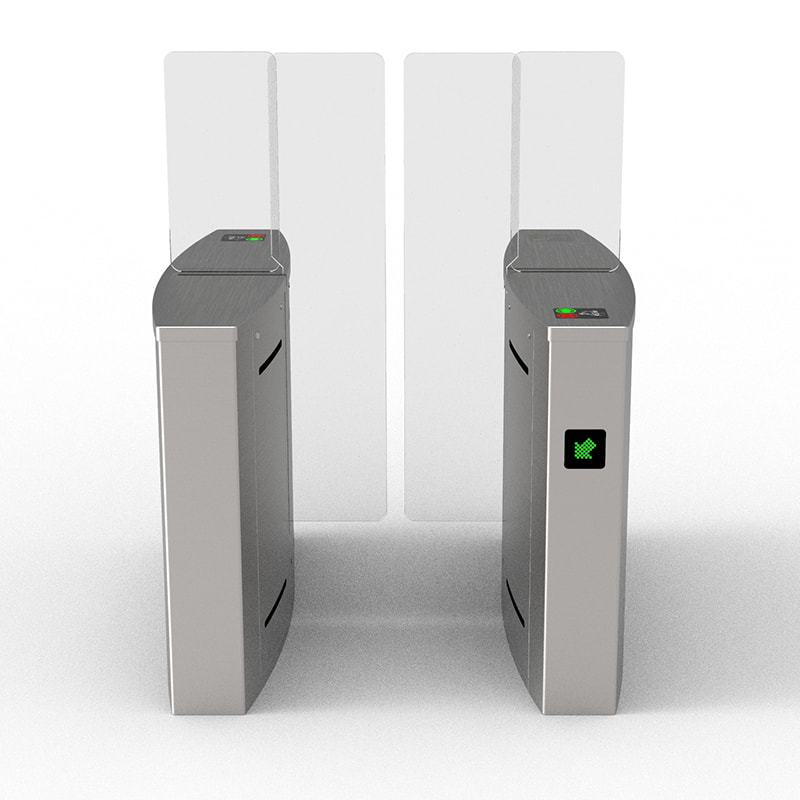

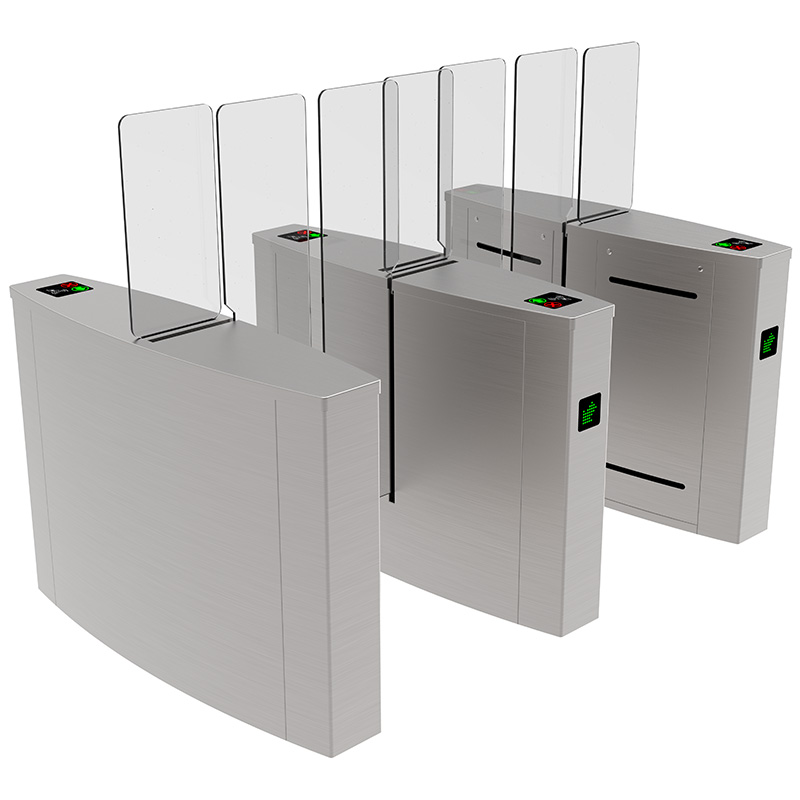

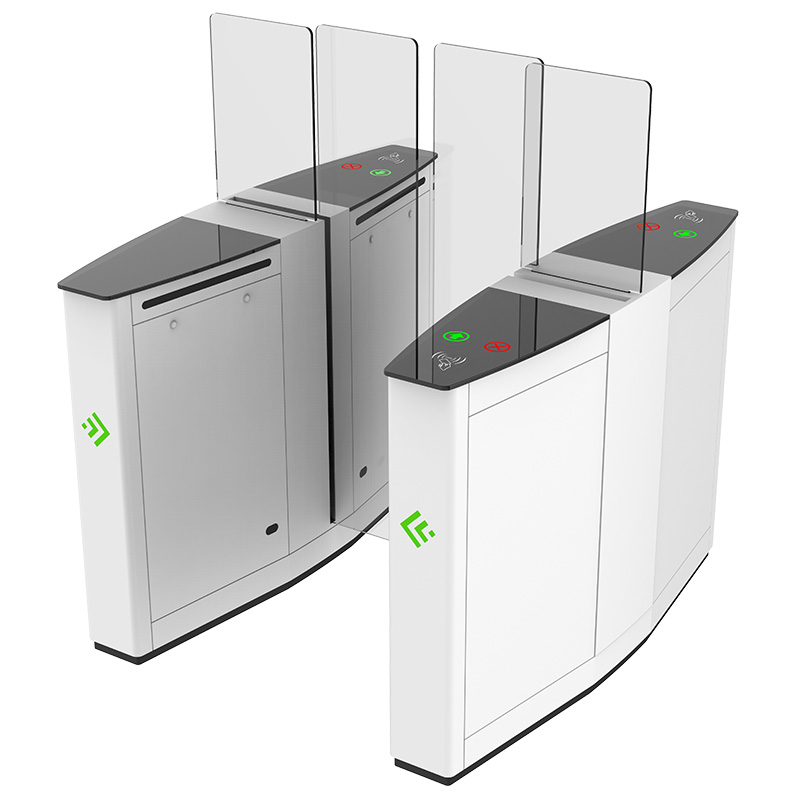

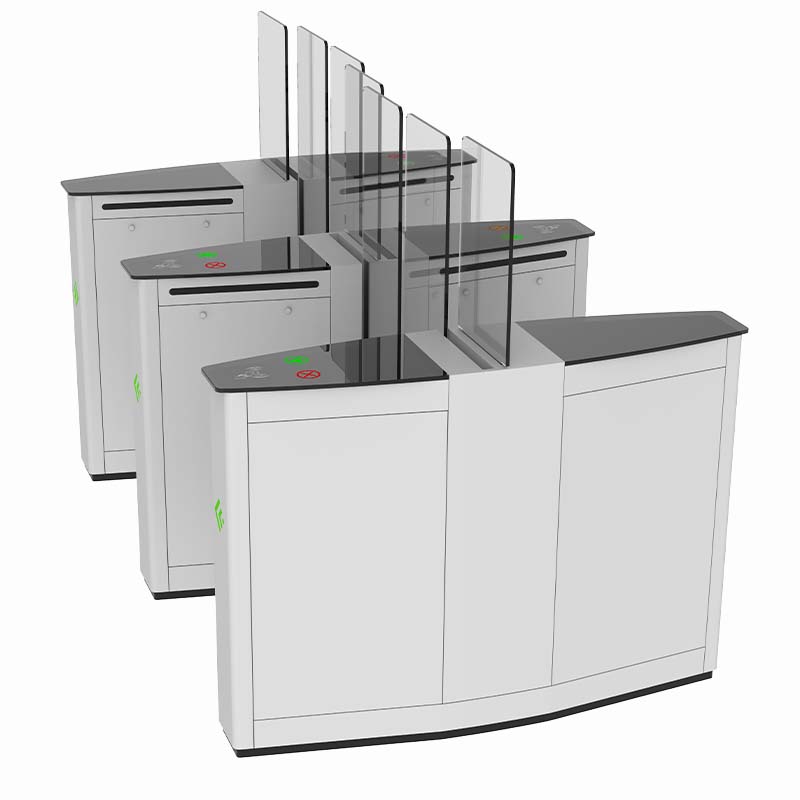

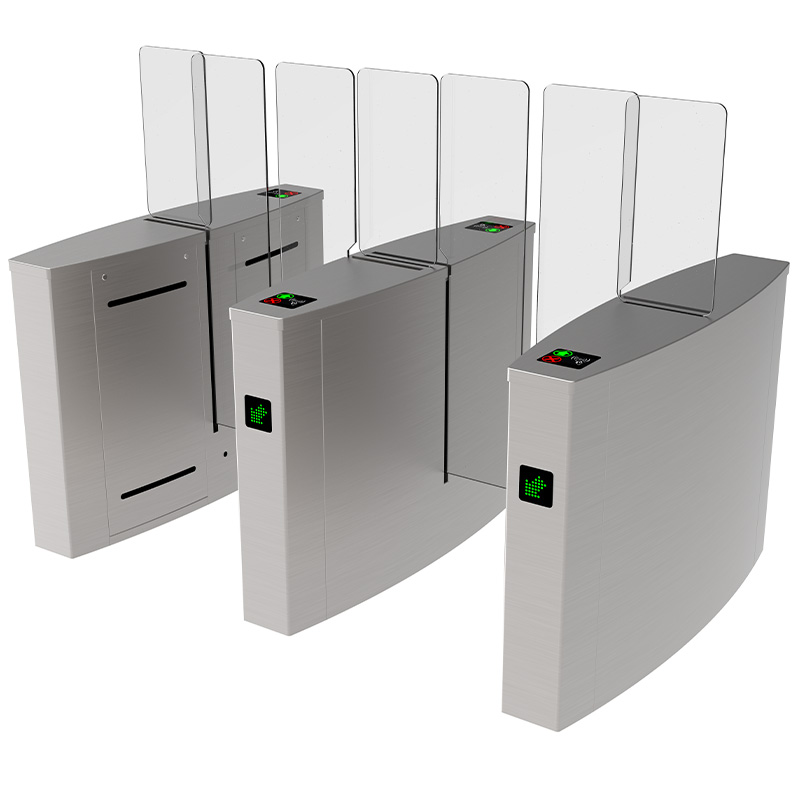

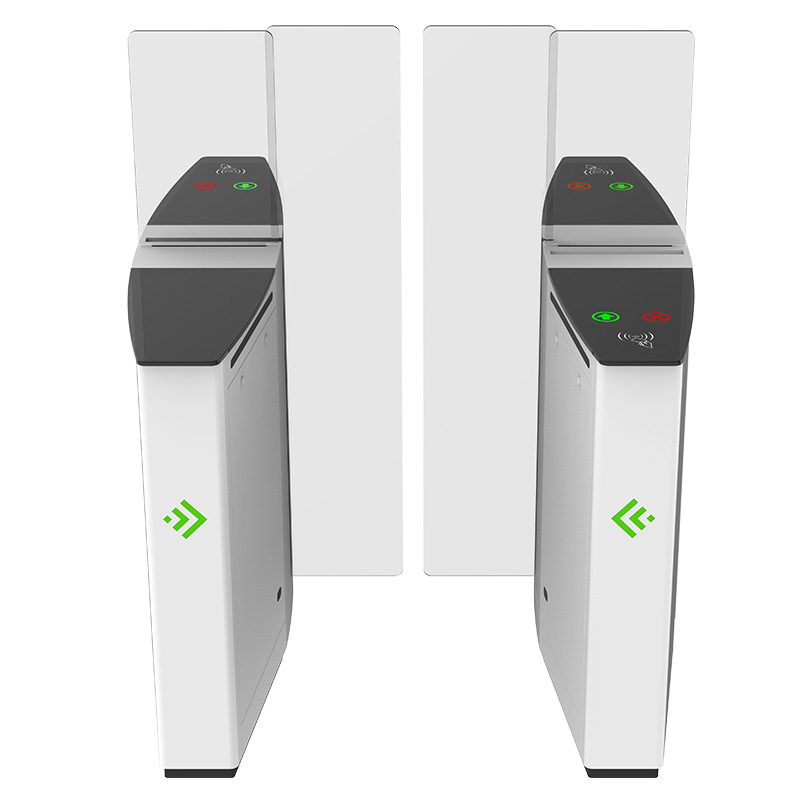

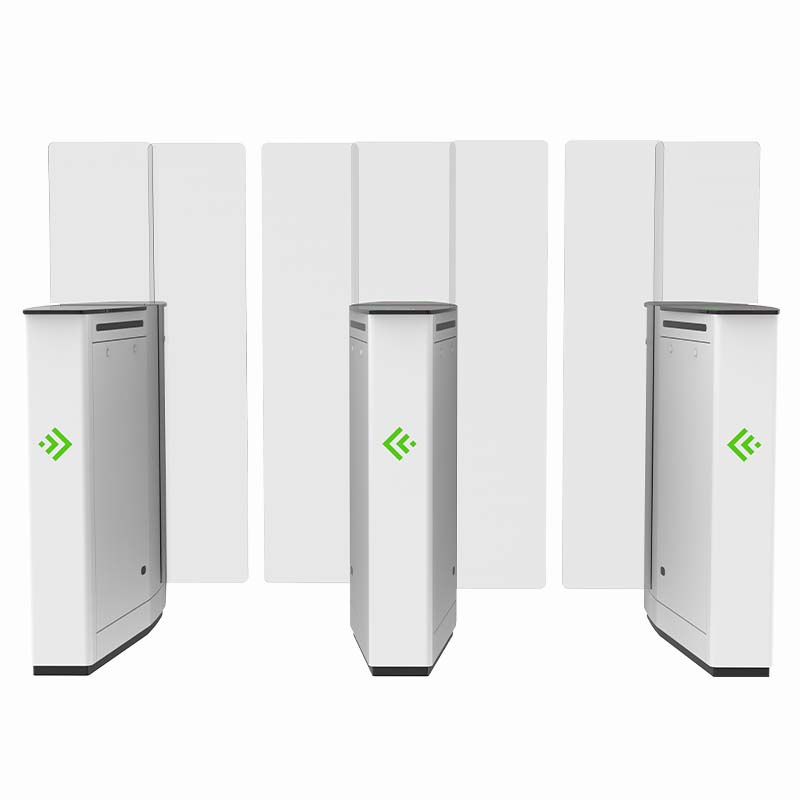

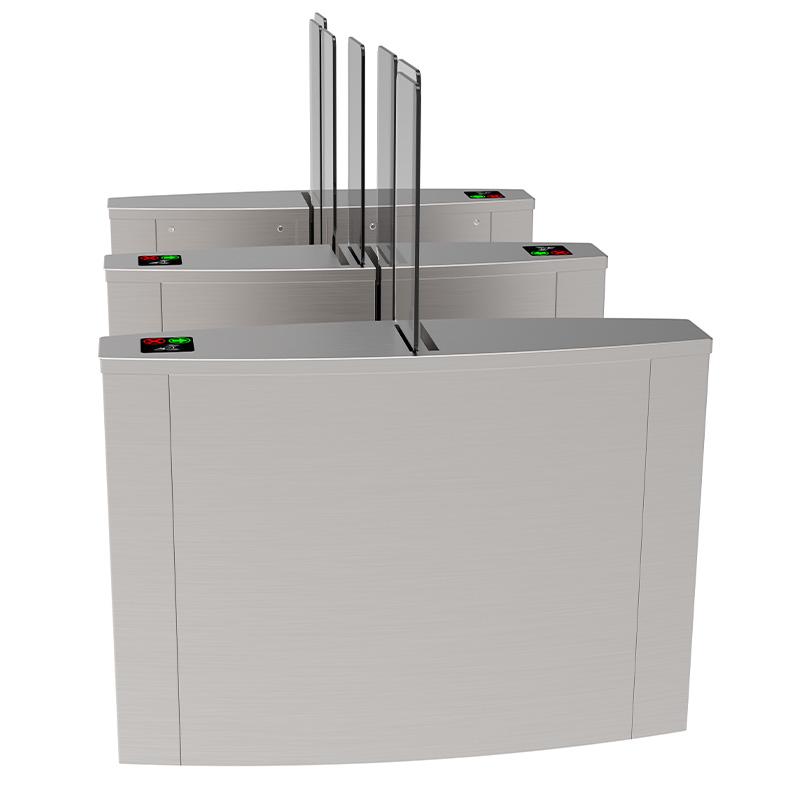

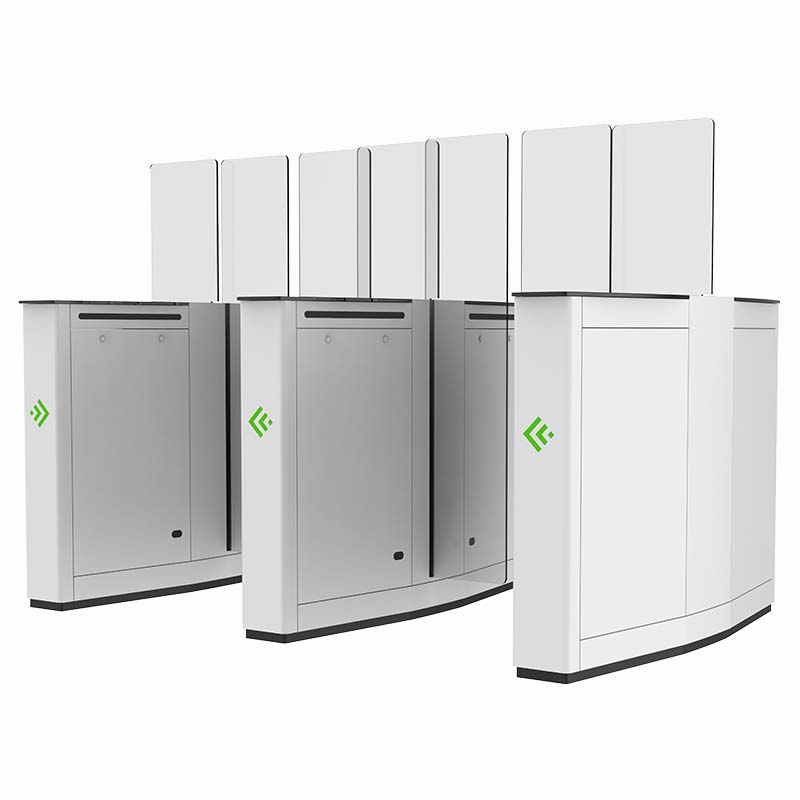

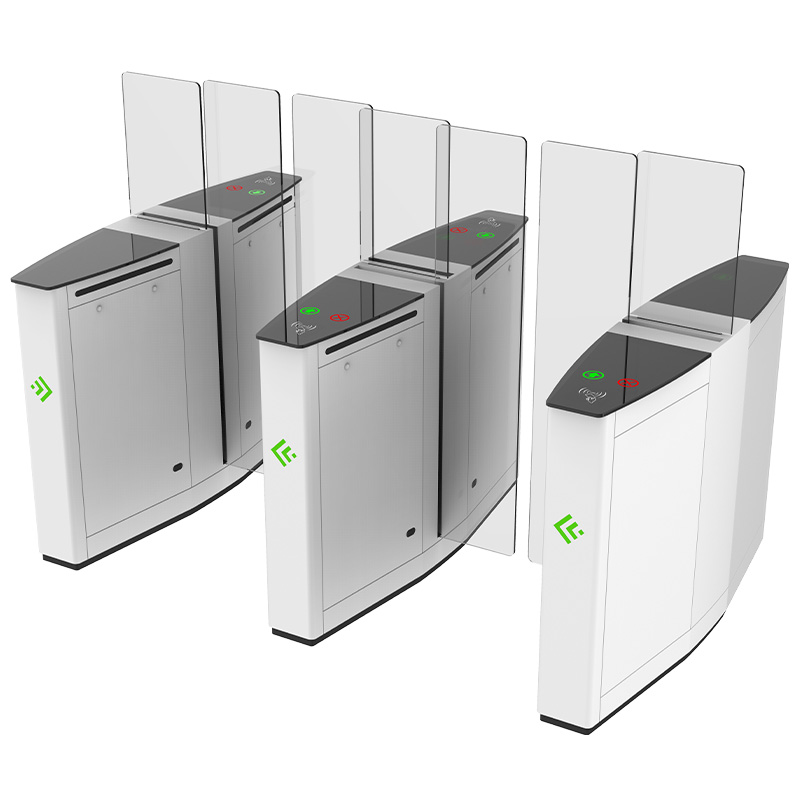

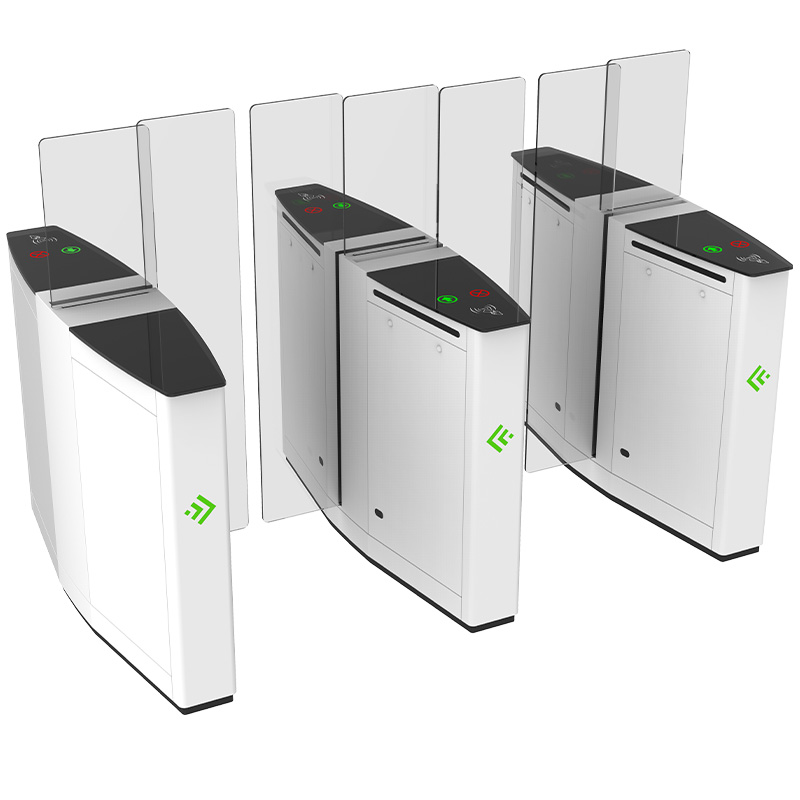

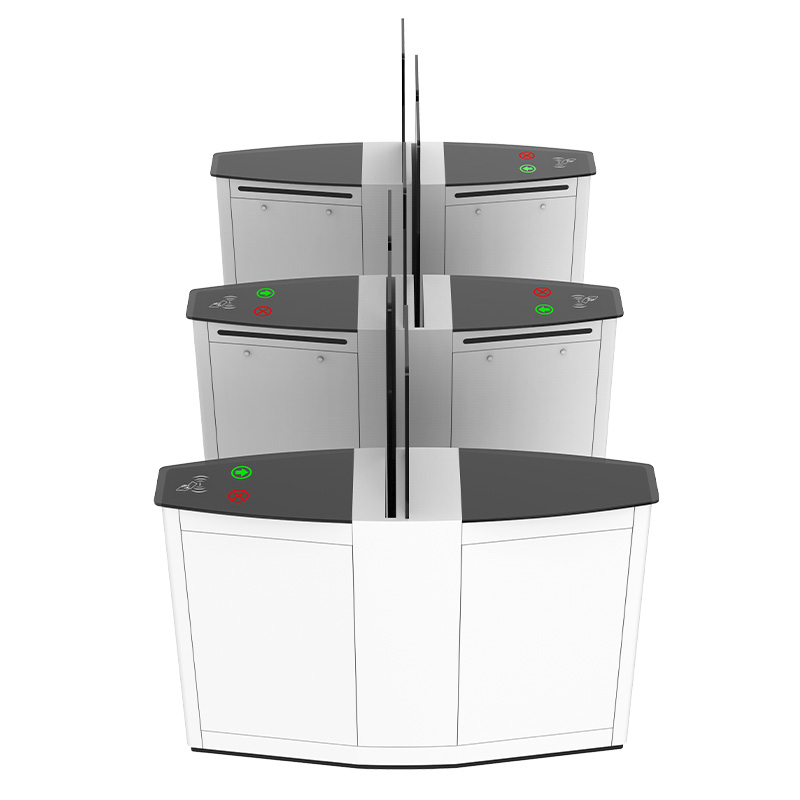

automatic flap gate turnstile automatic flap gate turnstile

Technical Parameter:

1. Size: 1400*300*1020 mm (can be customized)
2. Lane width: 600 mm (standard) 900 mm( Handicapped)
3. Passing speed: 40 person/min
4. Power supply: 110V/220V 50/60Hz
5. Driving Motor: 90W
6. Input: Dry Contact
7. Driving Motor: DC24V
9. Weight: 70 kg/pcs
10. Arm height: 1500 mm
11. Arm material: acrylic/tempered glass
12. Arm height 1800 mm can be customized
13. Casing Material: 304 stainless steel
14. Reliability of the mechanism: 3 million-5 million, no-fault
15. Lane width 900 mm can be customized
16. Motor: DC motor
17. Sliding arm thickness: 10 mm
18. Working Direction: Bidirectional/Single directional
19. Emergency situation: open automatically when the electricity is cut off with a capacitor
20. Automatic flap gate turnstile humidity: ≤90%
21. Working temperature: -20℃~60℃
22. Communication distance: ≤1200 m
23. Communication interface: RS485
24.  Feature: IC/ID reader, Barcode Reader, Face recognition, Fingerprint, other access control equipment, UPS, etc
25. Time needed for opening: 0.2 s
26. Working environment: Indoors
27. Application range: Community, Factory, Construction site, School, Place of the resort, etc

We can provide the entire security access control solution. If you have your own access control system, you can directly use our turnstile gate. If you don’t have one, we also provide a complete security access control solution. Please refer to the video below for details.
