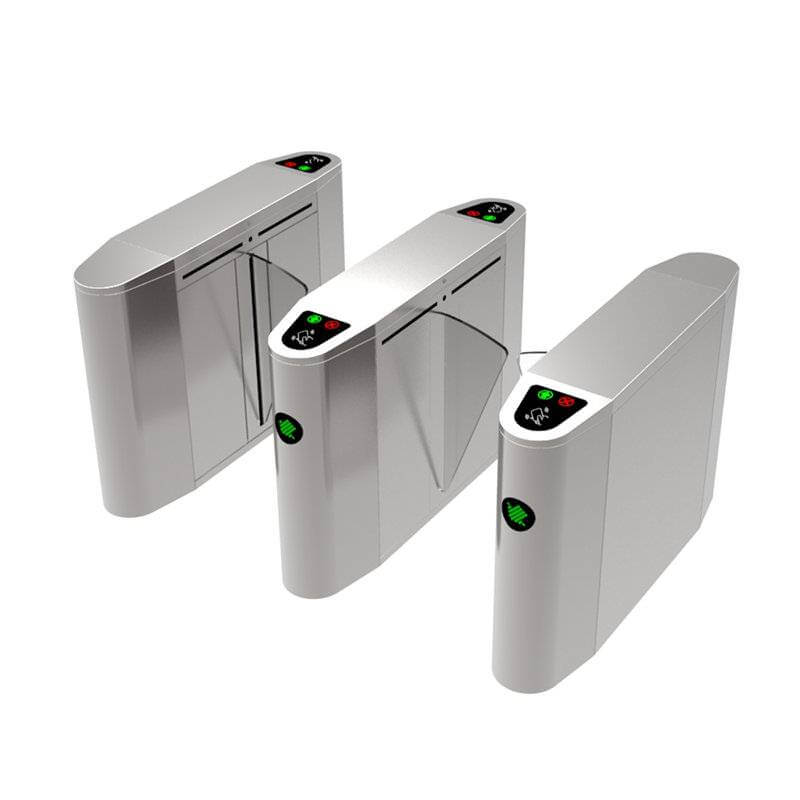

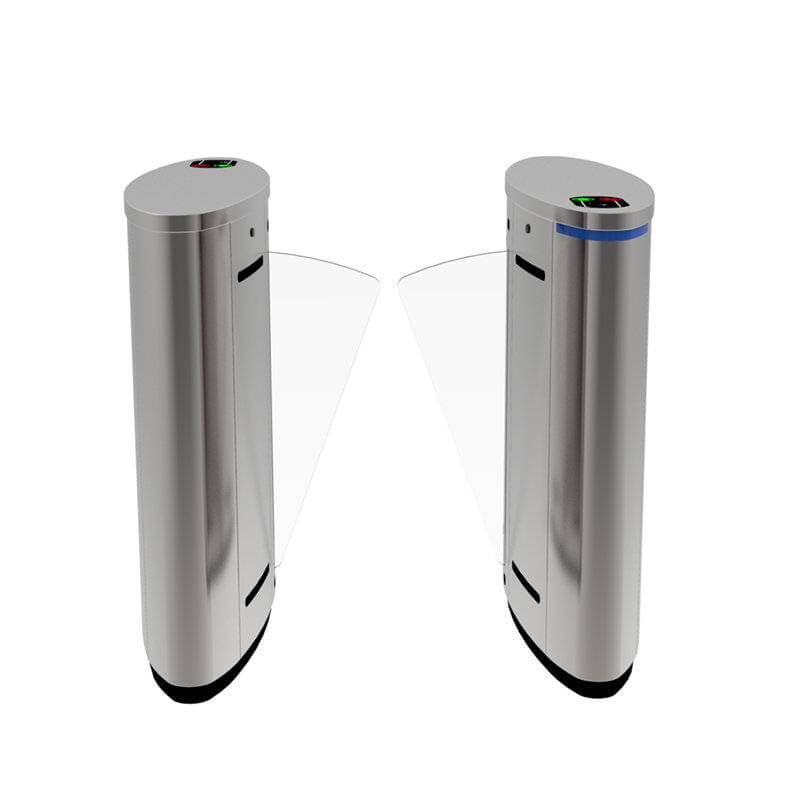

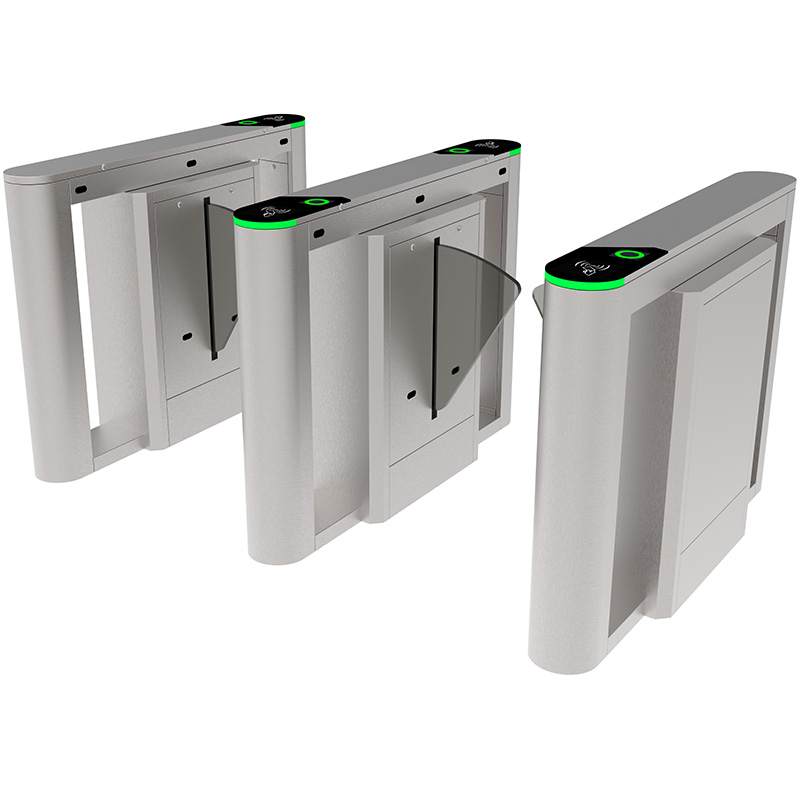

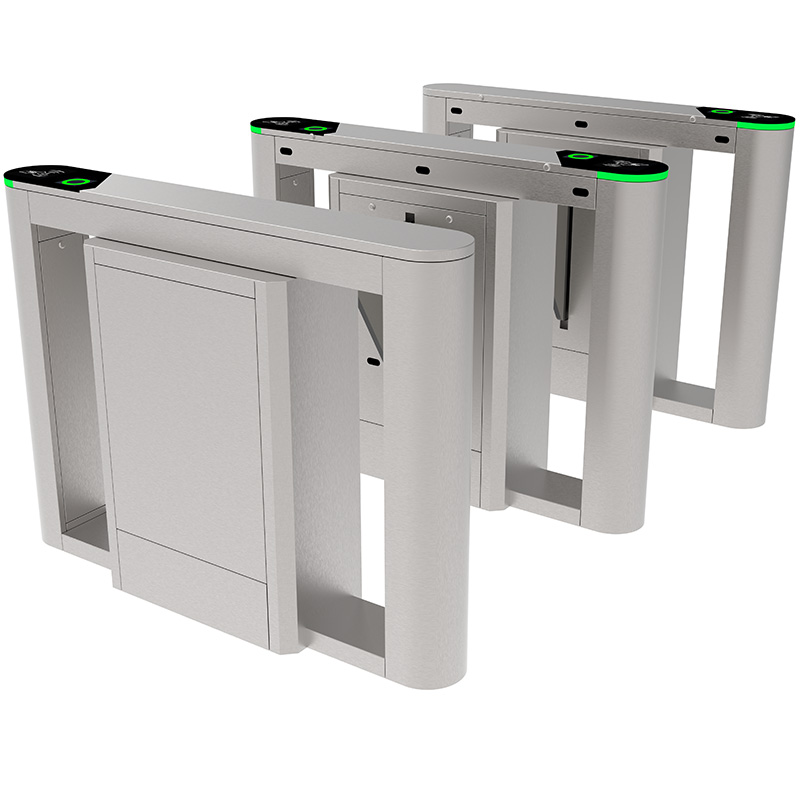

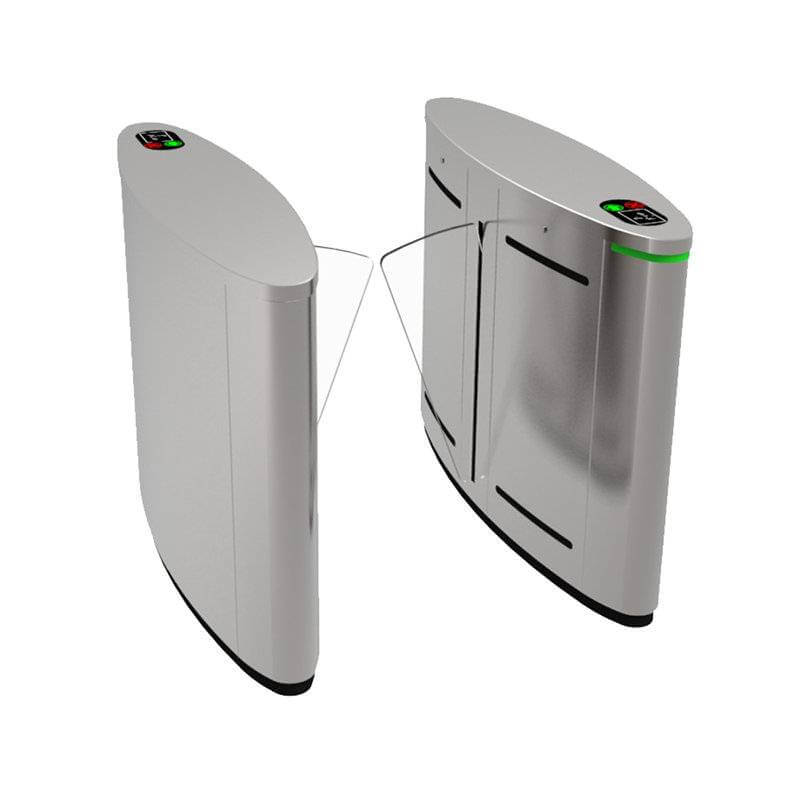

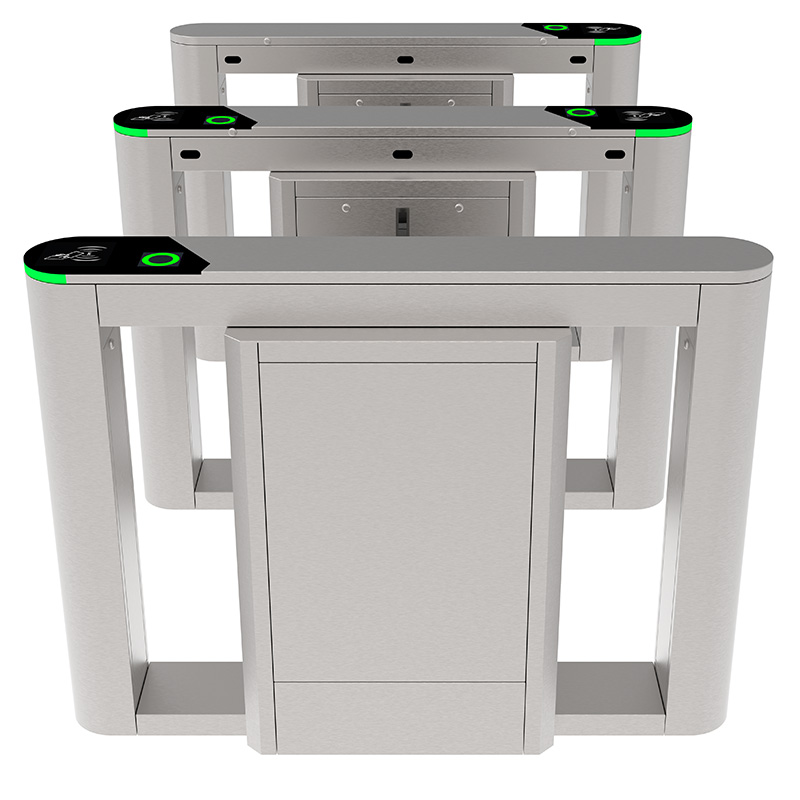

FLAP BARRIER DOUBLE FLAP TURNSTILE MT259
We can provide OEM and ODM services. We have experienced designers who can complete deep customization according to any of your needs. We will provide a series of materials such as 3D renderings, dimensional drawings, etc. as soon as possible.
All of our products carry a 2 years warranty and durable maintenance and repair support. We also provide biometric devices, such as fingerprint scanner, face recognition camera. RFID card reader, QR code scanner. If you need to integrate these devices on the turnstile gate or have any questions, please request a quote.
We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings. Let you have no worries about installation. Please download our corresponding PDF file for specific dimensions and installation dimensions.
Technical Parameter:
1. Size: 1400*300*980 mm (can be customized)
2. Lane width: 550 mm (can be customized)
3. Passing speed: 40 person/min
4. Power supply: 110V/220V 50/60Hz
5. Driving Motor: 20W
6. Gate Open Signal: Dry Contact/ Relay
7. Driving Motor: DC24V
8. Weight: 80 kg/pcs
9. Full Height Mechanism with the self-developed control board
10. Casing Material: 304 stainless steel
11. Reliability of the mechanism: 3 million-5 million, no-fault
12. Flap arm material: Acrylic
13. LED lights are arms are available
14. Blue PC arms are optional
15. Working Direction: Bidirectional/Single directional
16. Emergency situation: open automatically when the electricity is cut off with a capacitor
17. Humidity: ≤90％
18. Working temperature: -20℃～60℃
19. Communication distance: ≤1200 m
20. Communication interface: RS485
21. Size and material thickness can be customized
22. Time needed for opening: 0.2 s
23. Working Environment: Indoors
24. Application range: Community, Factory, Construction site, School, Place of the resort, etc
We can provide the entire security access control solution. If you have your own access control system, you can directly use our turnstile gate. If you don’t have one, we also provide a complete security access control solution. Please refer to the video below for details.
