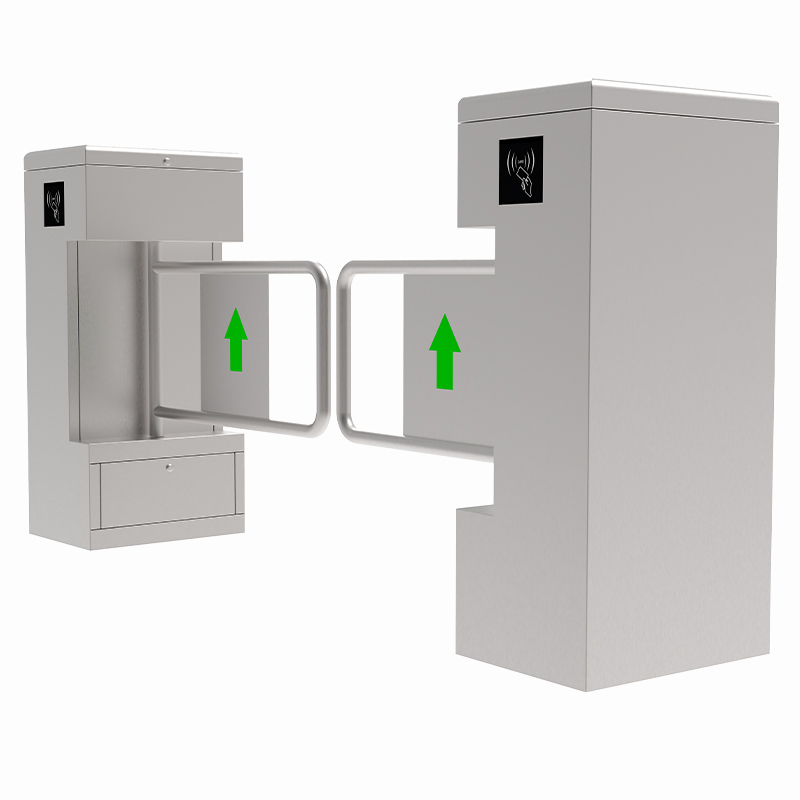

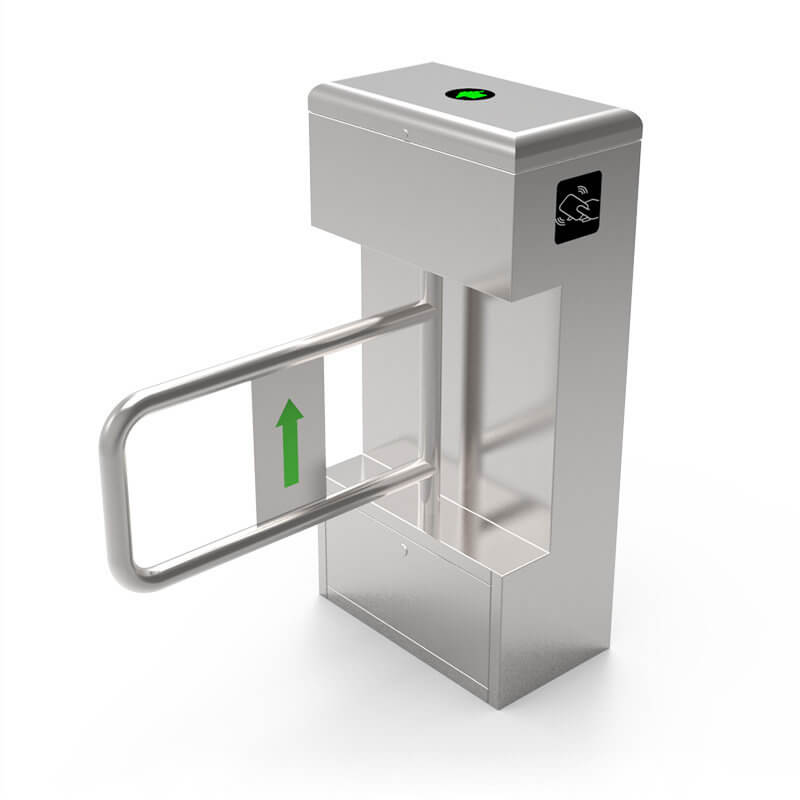

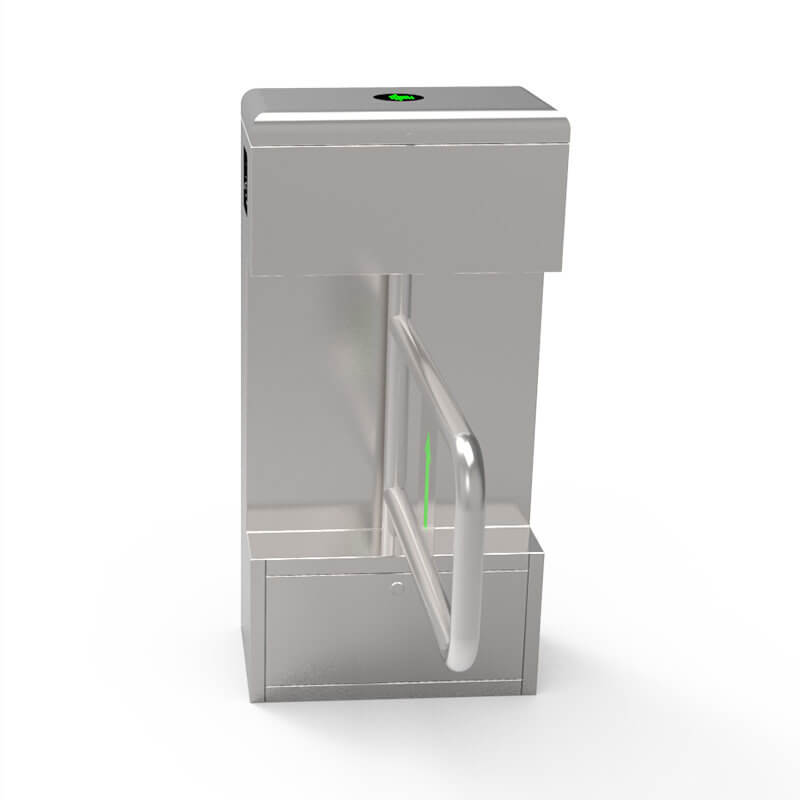

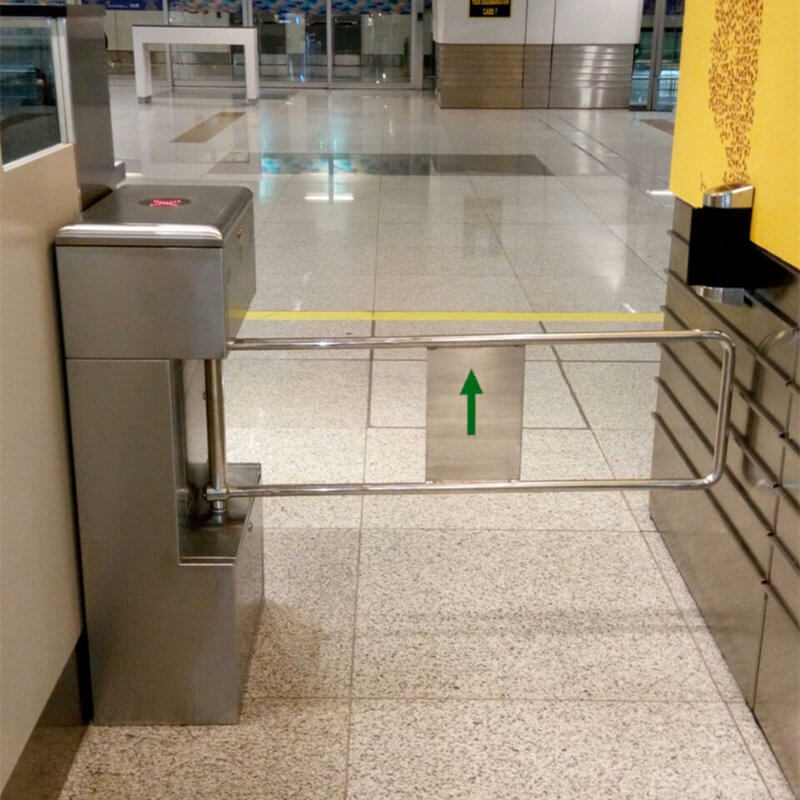

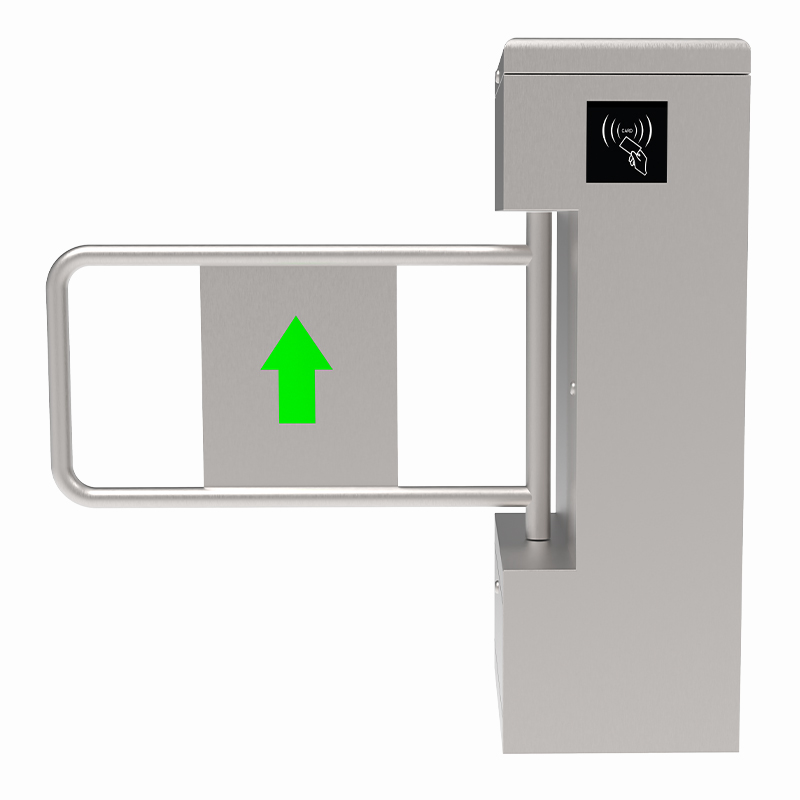

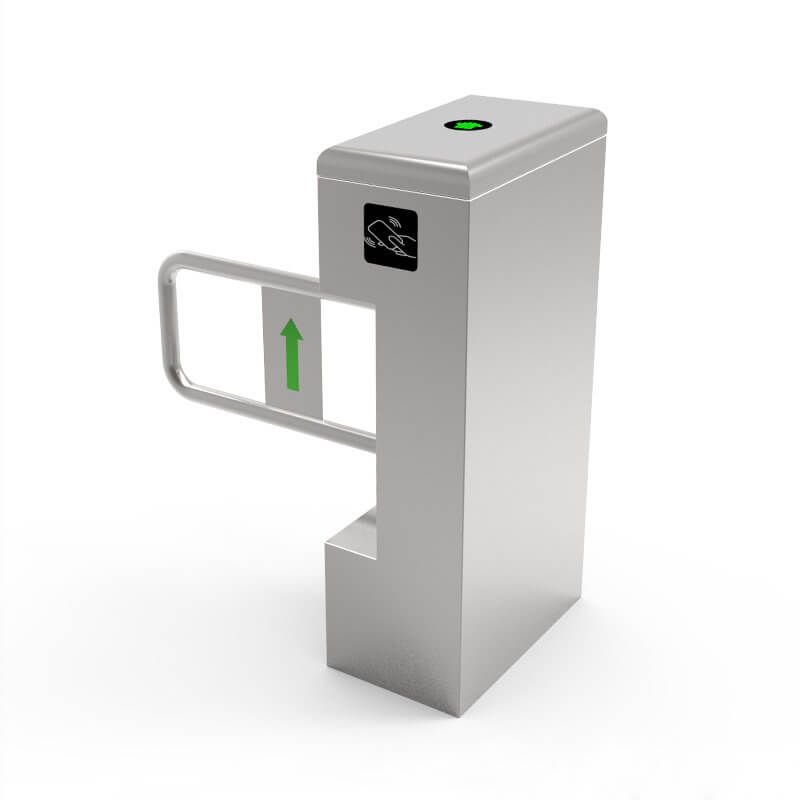

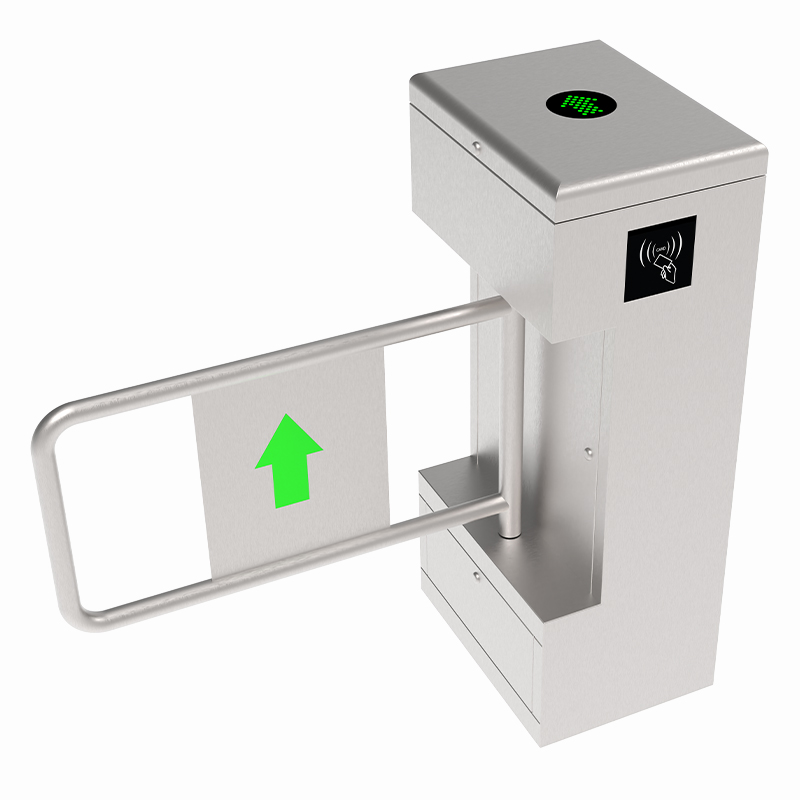

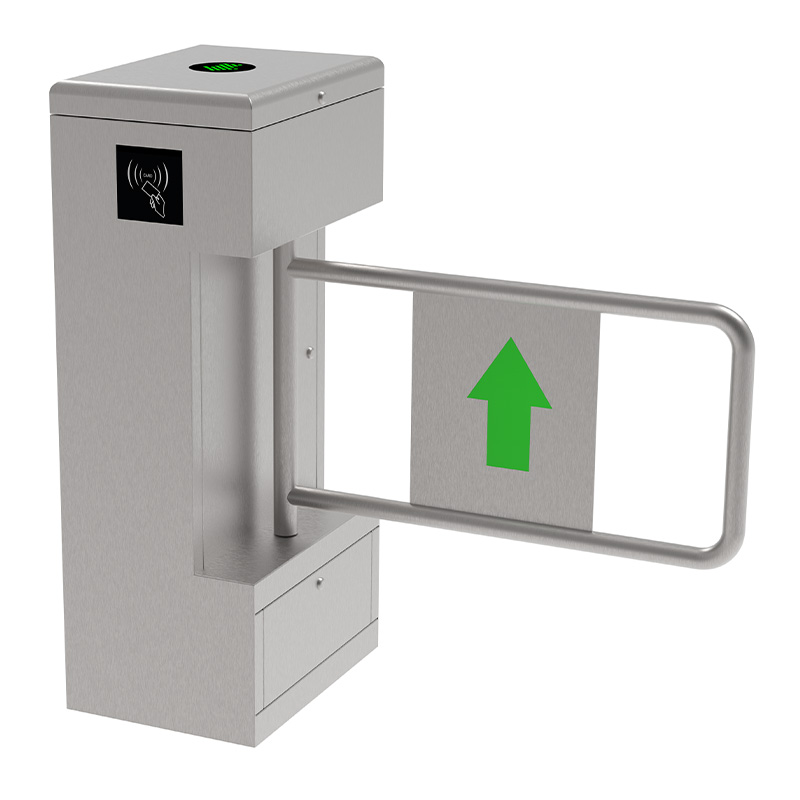

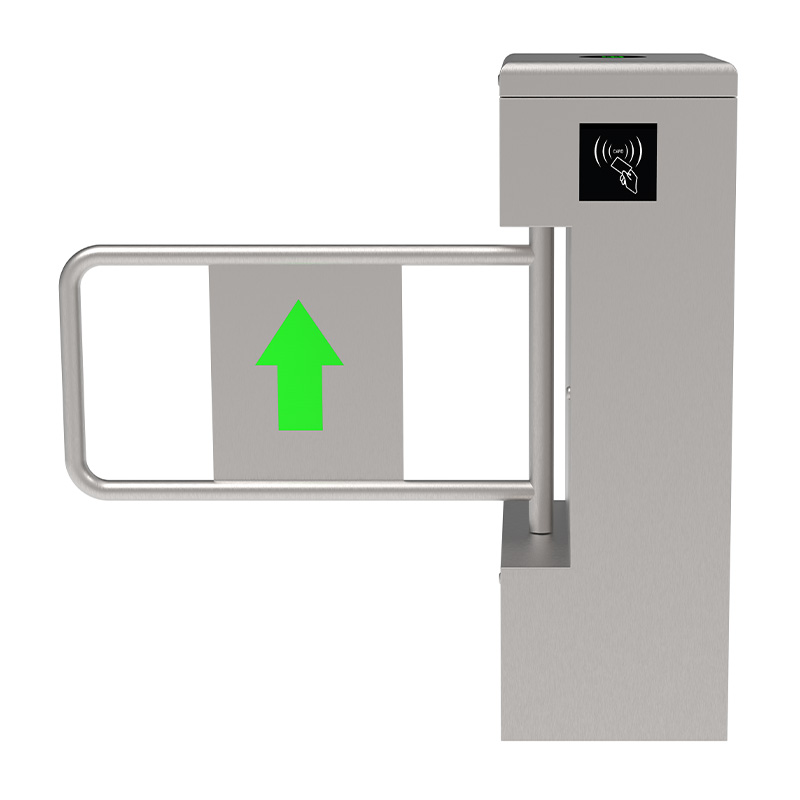

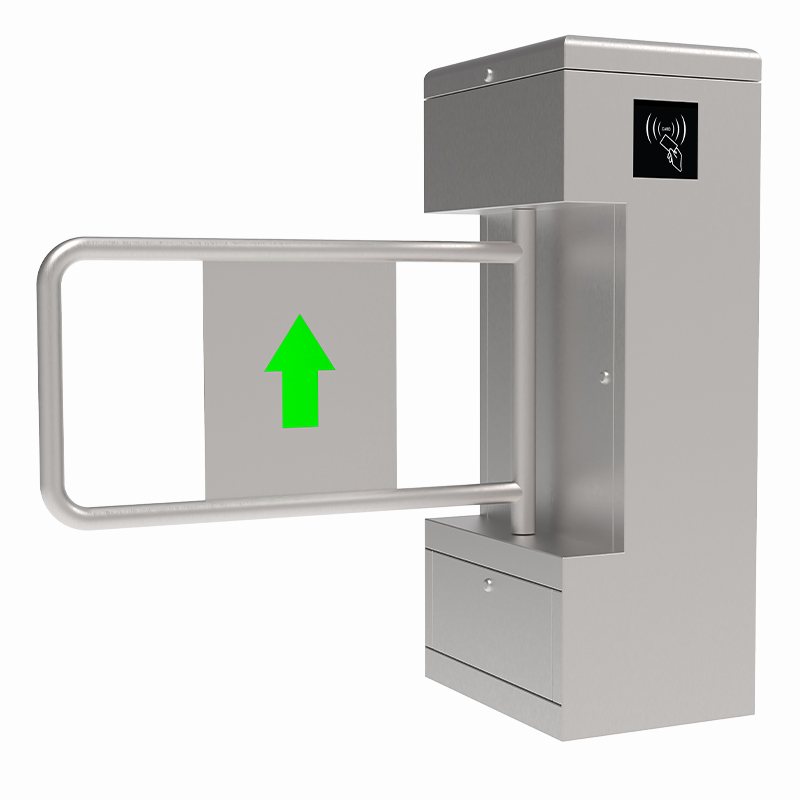

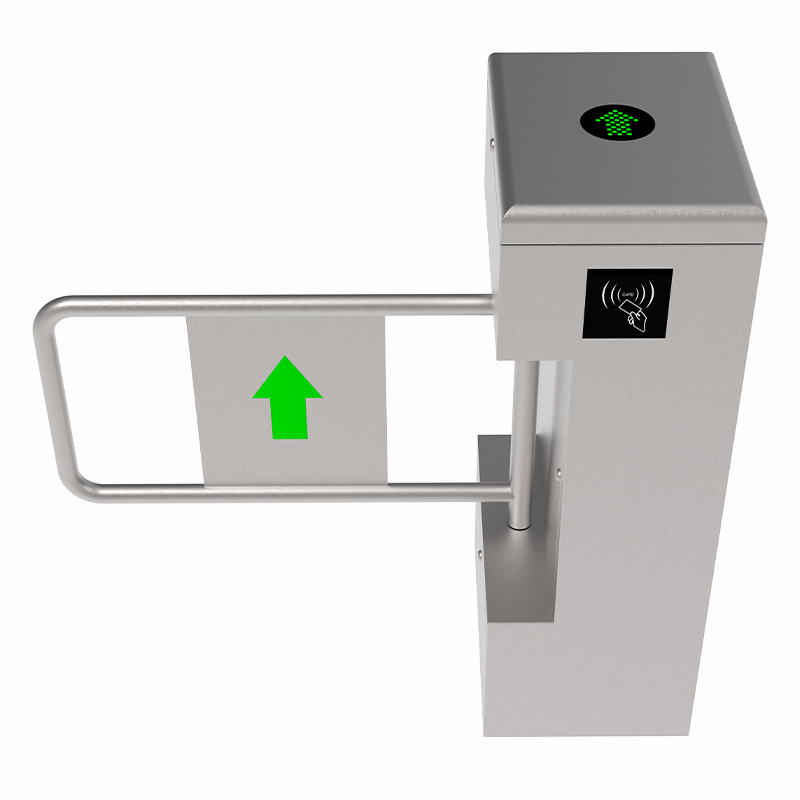

SWING BARRIER SWING TURNSTILE MT312
We can provide OEM and ODM services. All of our products carry a 2 years warranty and durable maintenance and repair support. We also provide biometric devices, such as fingerprint scanner, face recognition camera. RFID card reader, QR code scanner. If you need to integrate these devices on the turnstile gate or have any questions, please request a quote.

Technical Parameter:

1. Size: 420*330*980 mm (can be customized)
2. Max pass width: 1000 mm
3. Passing speed: 40 person/min
4. Power supply: 110V/220V 50/60Hz
5. Driving Consumption: 20W
6. In Gate Open Signal: Dry Contact/ Relay
7. Driving Motor: 24V
8. Weight: 30 kg/pcs
9. Widely used for free exit
10. Casing Material: 304 stainless steel
11. Reliability of the mechanism: 3 million, no-fault
12. Acrylic arm is available
13.  LED indicating light on the top cover

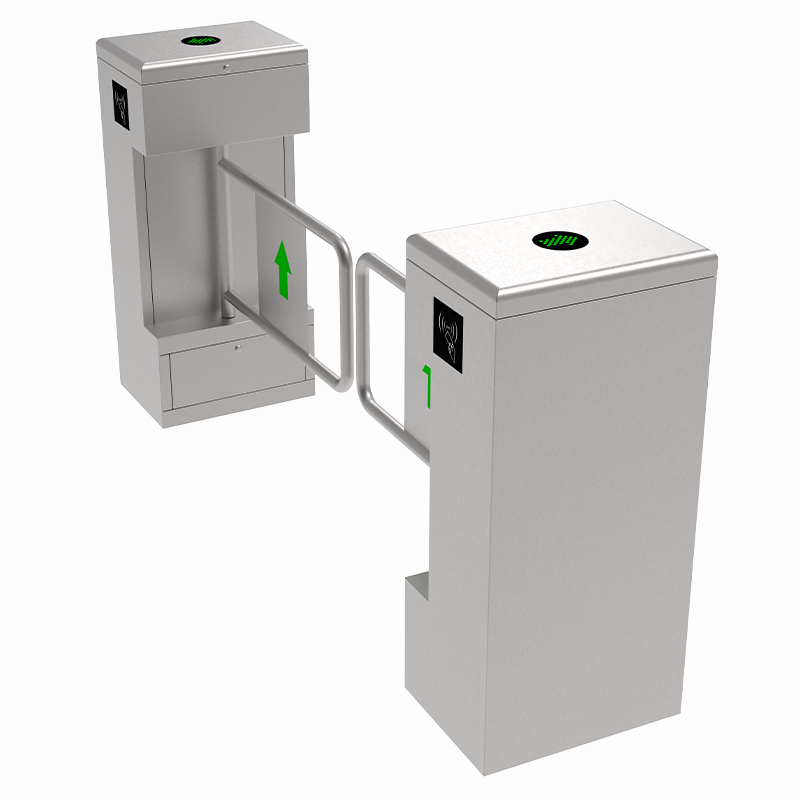

14. Single pcs or two pcs a lane both are available
15. Working Direction: Bidirectional/Single directional
16. Emergency situation: open automatically when the electricity is cut off. Backup battery self-provided
17. Humidity: ≤90%

18. Working temperature: -20℃~60℃
19. Communication distance: ≤1200 m
20. Communication interface: RS485
21. Feature: IC/ID reader, Barcode Reader, Face recognition, Fingerprint, other access control equipment, UPS, etc
22. Time needed for opening: 0.2 s
23. Working environment: Indoors or outdoors(outdoor is optional)
24. Application range: Community, Factory, Construction site, School, Place of the resort, etc
