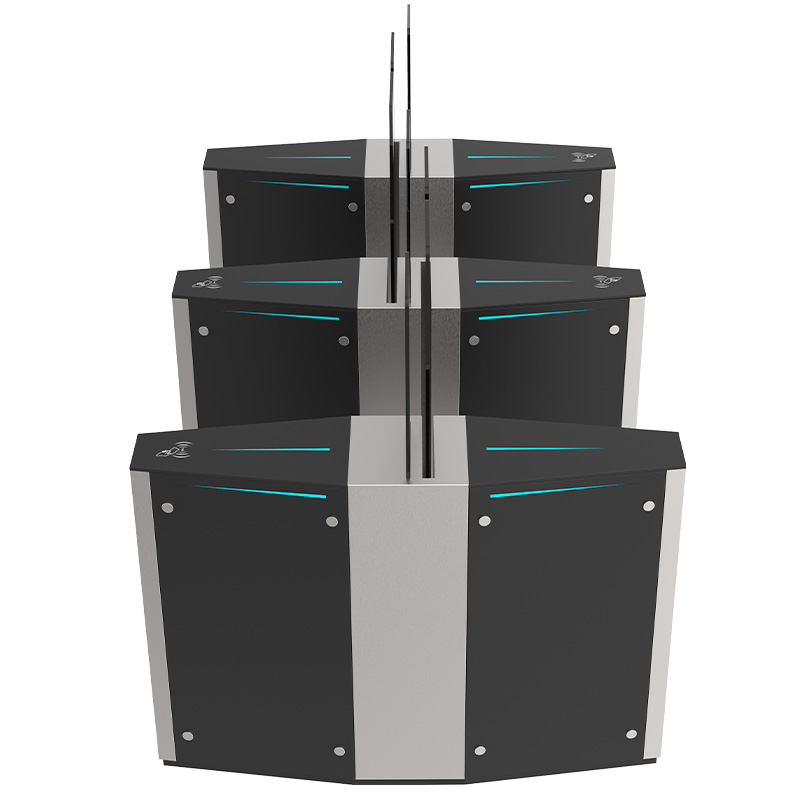

FULL HEIGHT SLIDING TURNSTILE BARRIER GATE MT227, Silent & Energy-Saving Sliding Turnstile — Green Solution, Eco-friendly sliding turnstile barrier gate consumes only 50W in standby. Noise level <35dB for libraries, museums, and quiet offices. Check our green design.Stop unauthorized entry with our intelligent sliding turnstile. 8 pairs of photocells & fast logic ensure reliable anti-tailgating. Ideal for data centers. Modular Sliding Turnstile barrier gate — Easy Setup & Maintenance, Plug-and-play sliding turnstile system with modular panels. Pre-wired and factory-tested, reduces installation time by 60%.
We can provide OEM and ODM services. From layout to installation, our sliding turnstile team offers free CAD drawing, on-site training, and remote support. Start your entrance control project. We have experienced designers who can complete deep customization according to any of your needs. We will provide a series of materials such as 3D renderings, dimensional drawings, etc. as soon as possible. Elevate guest experience with our mirrored stainless steel sliding turnstile barrier gate. Integrates with hotel key cards or face recognition. See resort case studies.

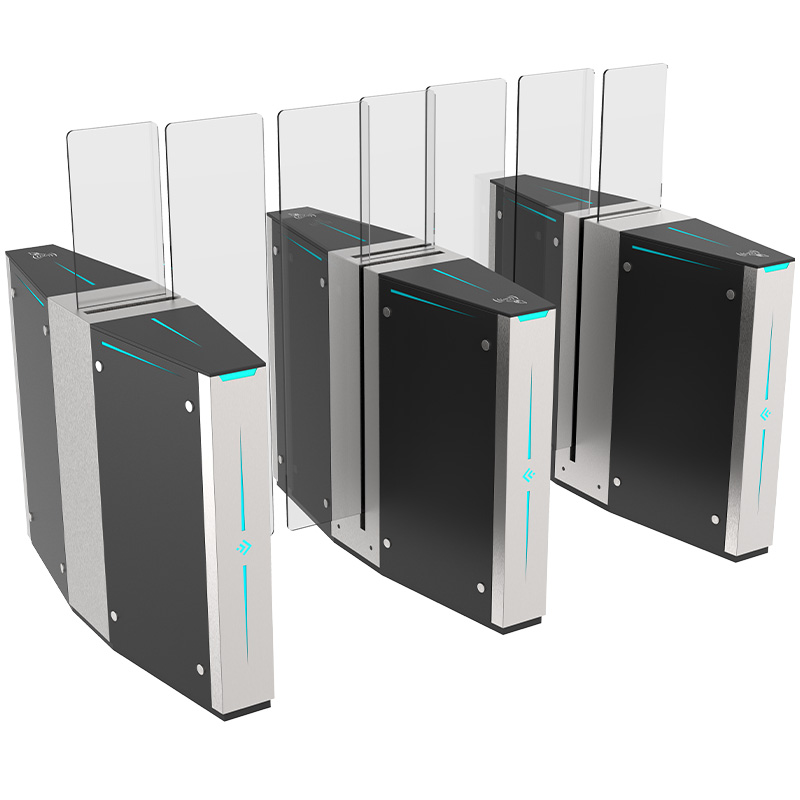

Elegant full-height tempered glass sliding turnstile maintains open sightlines. Unique frameless design, anti-tailgating, for airports & luxury hotels, Make an entrance with customizable RGB LED sliding turnstile barrier gate. 16 million colors, sync with building mood. Premium quality, unique night effect. Wide sliding turnstile barrier gate with dual servo motors, 1200mm clearance for wheelchairs & luggage. Elegant stainless cabinet, silent operation. Perfect for VIP & ADA lanes. Library-quiet sliding turnstile with brushless DC motor. Premium noise control, smooth slide motion. Perfect for museums, hospitals, high-end offices. Factory direct.
All of our products carry a 2-year warranty and durable maintenance and repair support. We also provide biometric devices, such as fingerprint scanners, and face recognition cameras. RFID card reader, QR code scanner. If you need to integrate these devices on the turnstile gate or have any questions, please request a quote.
We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layouts and drawings, as well as installation drawings. Let you have no worries about installation. Please download our corresponding PDF file for specific dimensions and installation dimensions.
Technical Parameter:
1. Size: 1400*350*1000 mm (can be customized)
2. Lane width: 600 mm (can be customized)
3. Passing speed: 40 person/min
4. Power supply: 110V/220V 50/60Hz
5. Driving Motor: 30W/40W
6. Gate Open Signal: Dry Contact/ Relay
7. Driving Motor: DC24V
8. Sliding turnstile barrier gate weight: 70 kg/pcs
9. Arm height: 1200 mm
10. Casing Material: 304 stainless steel
11. Reliability of the mechanism: 3 million-5 million, no-fault
12. Arm material: tempered glass or acrylic
13. Lane width 900 mm can be customized
14. Arm height 1800 mm can be customized
15. Working Direction: Bidirectional/Single directional
16. Emergency situation: open automatically when the electricity is cut off with a capacitor
17. Sliding turnstile barrier gate humidity: ≤90％
18. Working temperature: -20℃～60℃
19. Communication distance: ≤1200 m
20. Communication interface: RS485
21. Feature: IC/ID reader, Barcode Reader, Face recognition, Fingerprint, other access control equipment, UPS, etc
22. Time needed for opening: 0.2 s
23. Working Environment: Indoors
24. Application range: Community, Factory, Construction site, School, Place of the resort, etc
We can provide the entire security access control solution. If you have your own access control system, you can directly use our turnstile gate. If you don’t have one, we also provide a complete security access control solution. Please refer to the video below for details.
