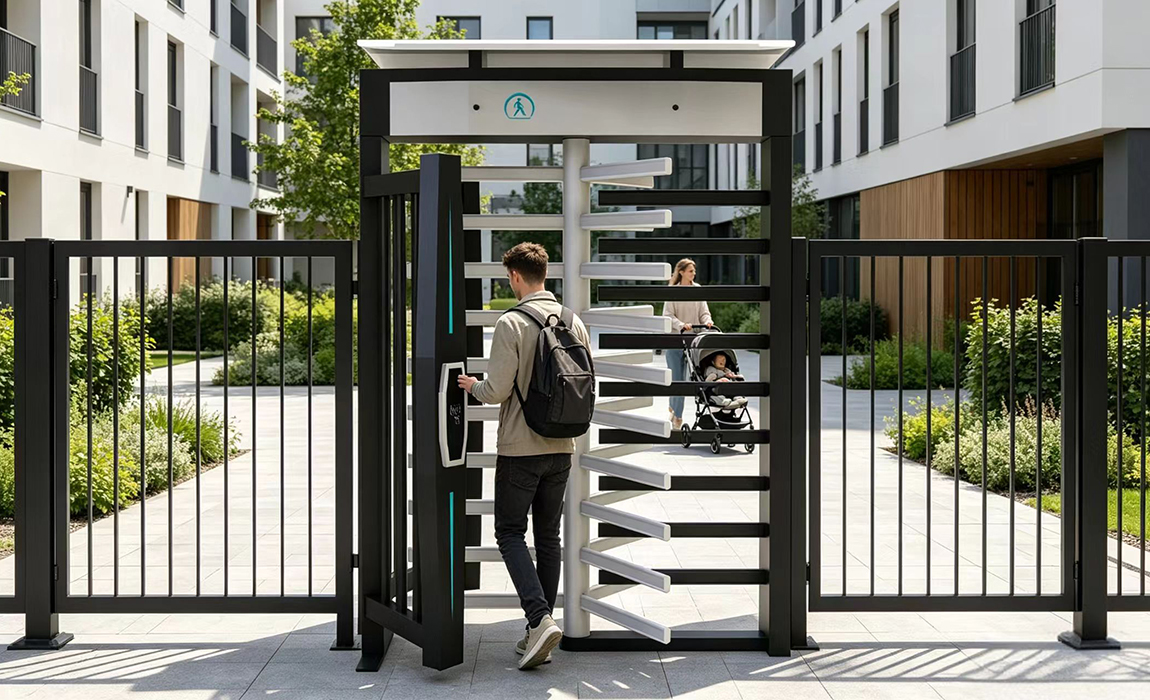

Industrial outdoor full height turnstile with IP56 rating & -30°C to +60°C operation. Electro-galvanized or SUS304/316 steel finish, resistant to high humidity and salt spray. Built for refineries, ports, and factory premises. Fully customizable outdoor full height turnstile designed for architects. Create a security entrance that complements your building design.
Discover our unique designer outdoor full height turnstile that blends premium architecture with extreme security. Elevate your facility appearance while stopping tailgating. Custom finishes available. LPCB-certified full length turnstile designed for prisons and detention centers. 304 stainless steel, anti-climb, anti-tailgating, fully unattended 24/7 operation. Approved by security consultants worldwide.

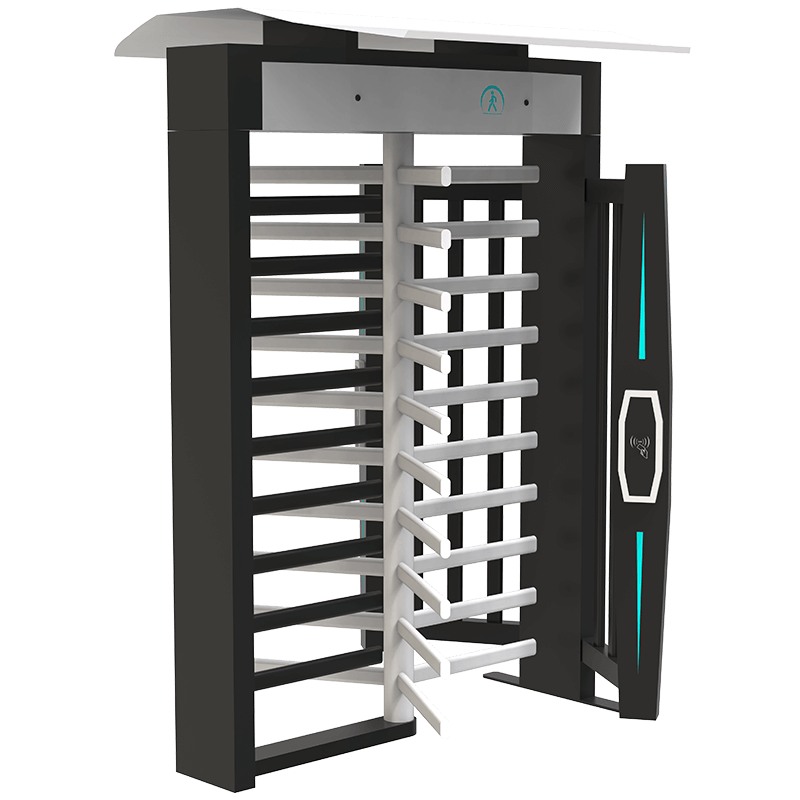

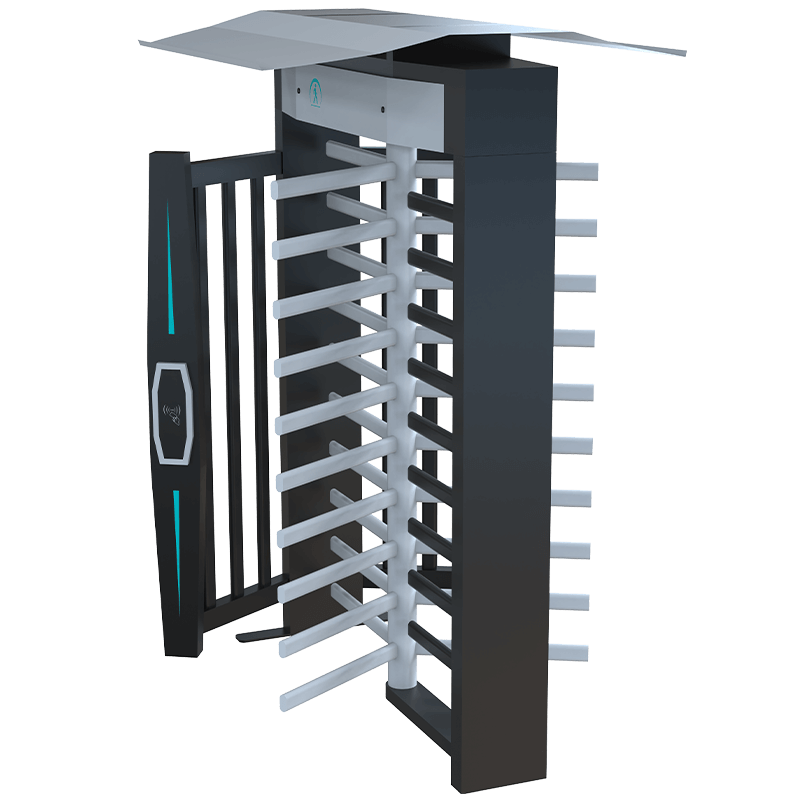

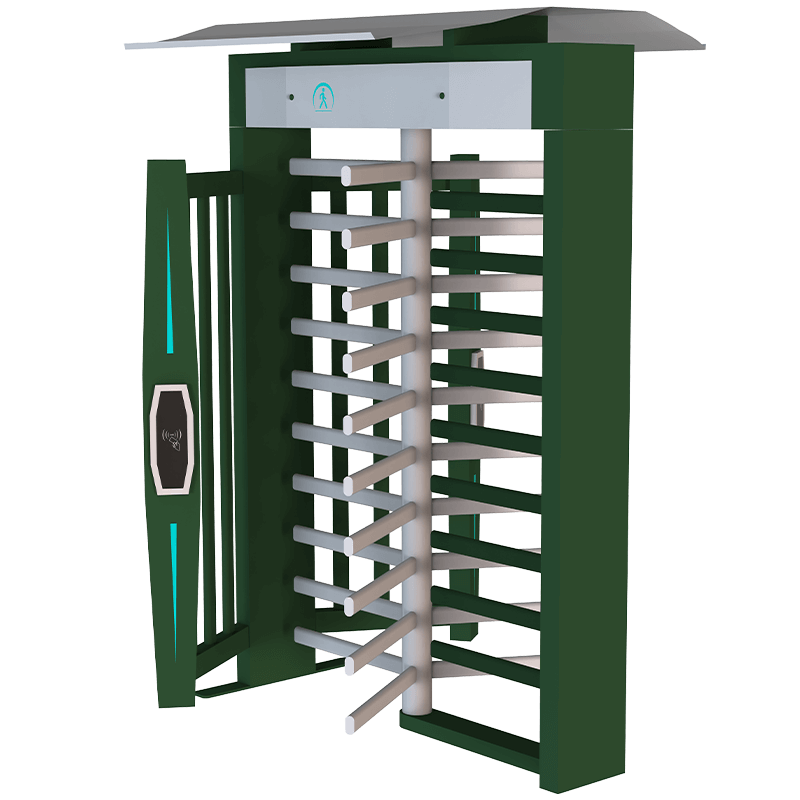

We can provide OEM and ODM services. We have experienced designers who can complete deep customization according to any of your needs. We will provide a series of materials such as 3D renderings, dimensional drawings, etc. as soon as possible. Premium Full Height Gate Turnstile, Unique Architectural Design for High Security, Discover our uniquely designed full-height gate turnstile. Elegant stainless steel body, anti-tailgating, and silent operation. Ideal for data centers & stadiums.
All of our products carry a 2 years warranty and durable maintenance and repair support. We also provide biometric devices, such as fingerprint scanners, and face recognition cameras. RFID card reader, QR code scanner. If you need to integrate these devices on the full height gate turnstile or have any questions, please request a quote.
We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layouts and drawings, as well as installation drawings. Let you have no worries about installation. Please download our corresponding PDF file for specific dimensions and installation dimensions.
Technical Parameter:
1. Size:1630*1500*2310 mm (can be customized)
2. Lane Width: 650mm (can be customized)
3. Passing speed: 30 person/min
4. Power supply: 110V/220V 50/60Hz
5. Outdoor full height turnstile Solenoid: DC24V
6. Gate Open Signal: Dry Contact/ Relay
7. Logic Voltage: DC24V
8. Casing Material: Iron with powder coating, color optional
9. Reliability of the mechanism: 5 million, no faults
10. Mechanism with hydraulic damper for shock absorption
11. Drive: Semi-automatic Operated
12. Arm length: 610 mm
13. Direction of rotation: Bidirectional
14. Emergency situation: In the event of an emergency or isolation of the power supply the Rotating Door can be configured to Fail-Safe i.e. rotates freely or Fail-Lock
15. Outdoor full height turnstile humidity: ≤95％
16. Working temperature:-25℃～60℃
17. Optional Feature: IC/ID reader, Barcode Reader, Face recognition, Fingerprint, other access control equipment, UPS, etc
18. Communication distance: ≤1200 m
19. Communication interface: RS485
20. Size can be customized
21. Time needed for opening: 0.2 s
22. Working environment: Indoors or outdoors(outdoor is optional)
23. Application range: Community, Factory, Construction site, School, Place of the resort, etc
We can provide the entire security access control solution. If you have your own access control system, you can directly use our turnstile gate. If you don’t have one, we also provide a complete security access control solution. Please refer to the video below for details.
