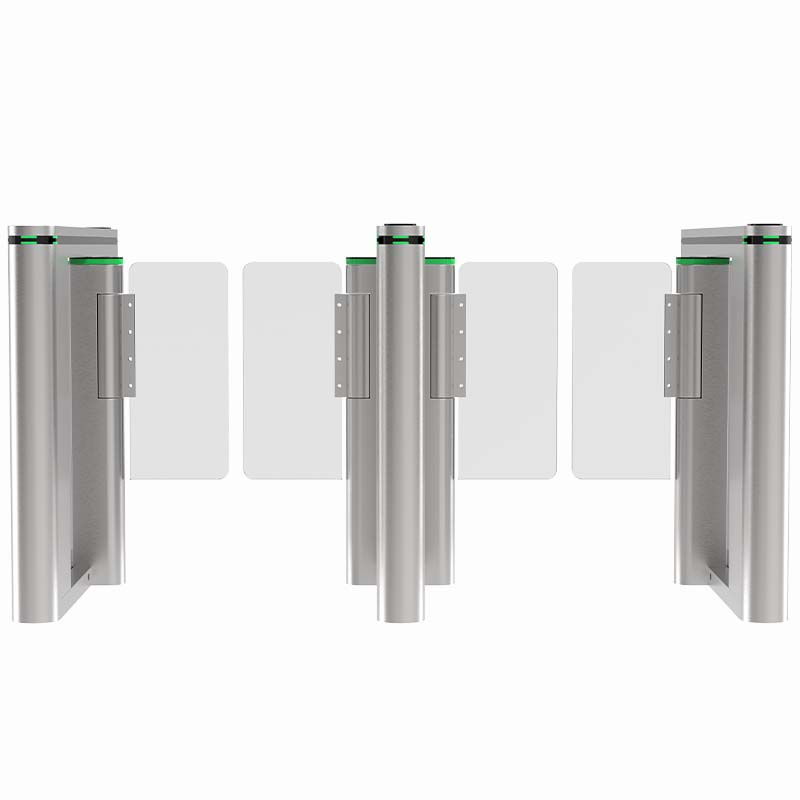

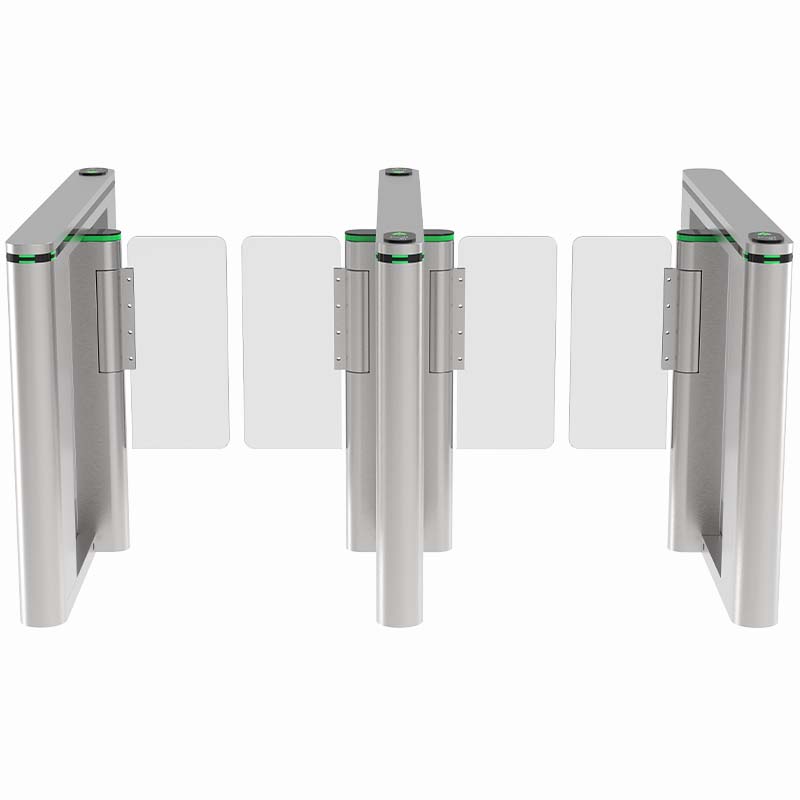

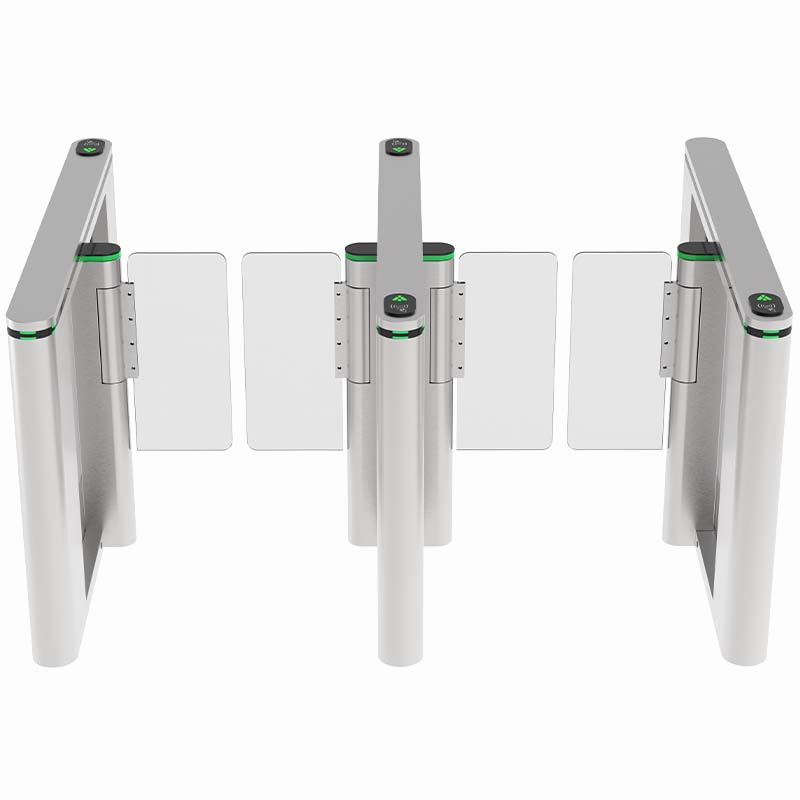

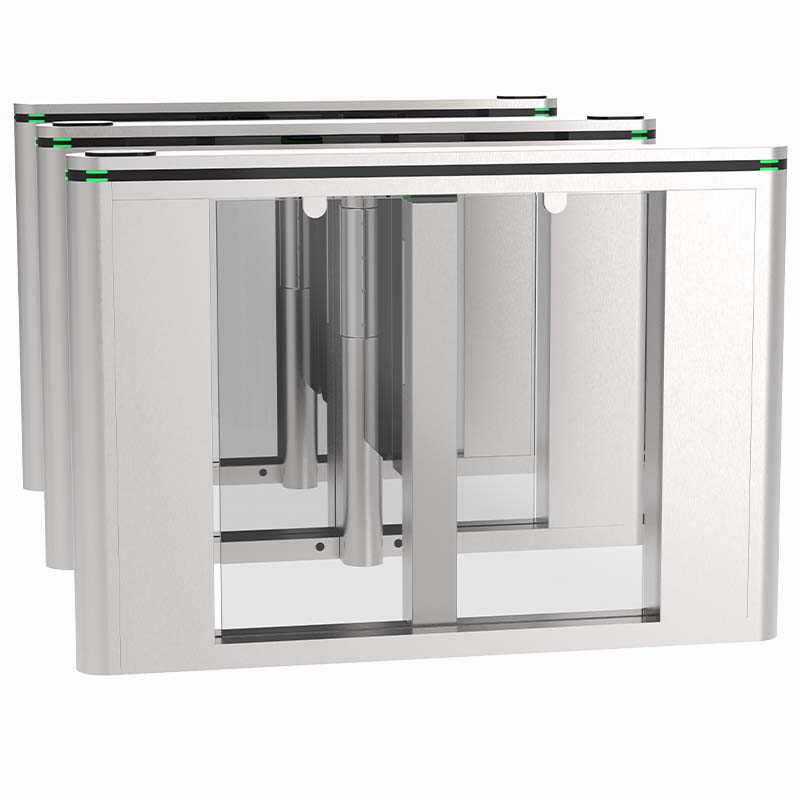

HIGH QUALITY METAL TURNSTILE SPEED GATE MT-A304

We can provide OEM and ODM services. We have experienced designers who can complete deep customization according to any of your needs. We will provide a series of materials such as 3D renderings, dimensional drawings, etc. as soon as possible.

All of our products carry a 2 years warranty and durable maintenance and repair support. We also provide biometric devices, such as fingerprint scanners, and face recognition cameras. RFID card reader, QR code scanner. If you need to integrate these devices on the turnstile gate or have any questions, please request a quote.

We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings. Let you have no worries about installation. Please download our corresponding PDF file for specific dimensions and installation dimensions.

Technical Parameter:

1. Size: 1500*120*980 mm
2. Material: Cap1.5 mm+body 1.2mm  Brushed SUS 304
3. Arm material: 10 mm Acrylic(tempered glass option)
4. Pass Width: Standard 600 mm max 1200 mm(arm hollowed out more than 900mm)
5. Arm Height: 1500 mm max(900 mm access width)
6. Passage direction  Single directional/Bi-directional
7. Pass rate: 30-35 persons/minute
8. Operating time: 0.2 seconds
9. Power input: AC100-240V,50/60HZ
10. Working voltage: 24V
11. Working humidity: 30%~95%
12. Working temperature: -40℃~+70℃
13. Working environment: Indoor

14. Input interface: RS485, Dry contact
15. Mechanism: Servo Brushless motor 120W
16. Infrared sensor: 6 pairs
17. MCBF: 5,000,000 Cycles
18. Application: Office Building, Hotels, Government Halls, etc

We can provide the entire security access control solution. If you have your own access control system, you can directly use our turnstile gate. If you don’t have one, we also provide a complete security access control solution. Please refer to the video below for details.
