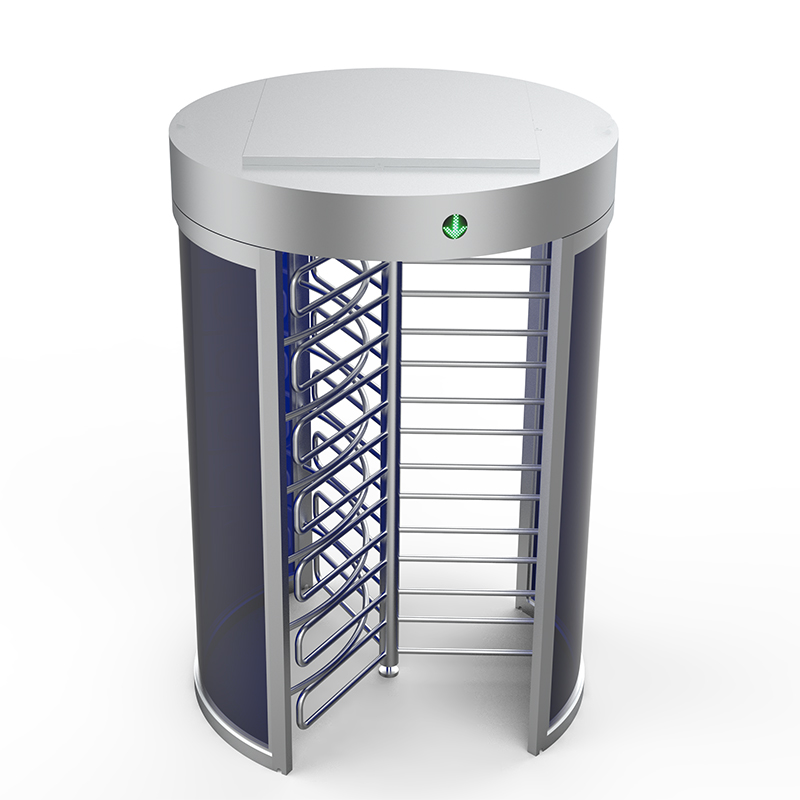

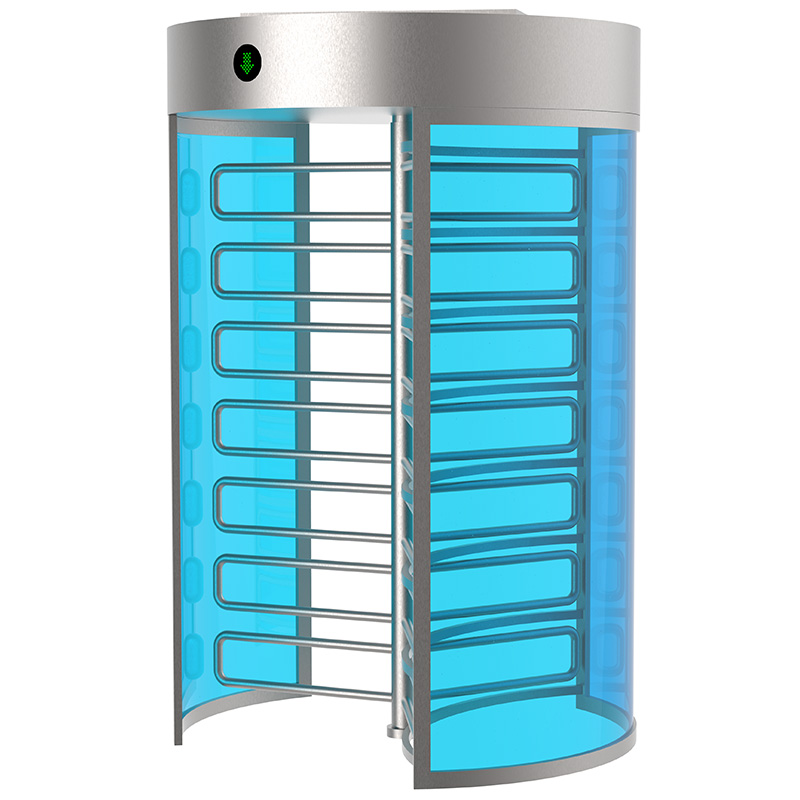

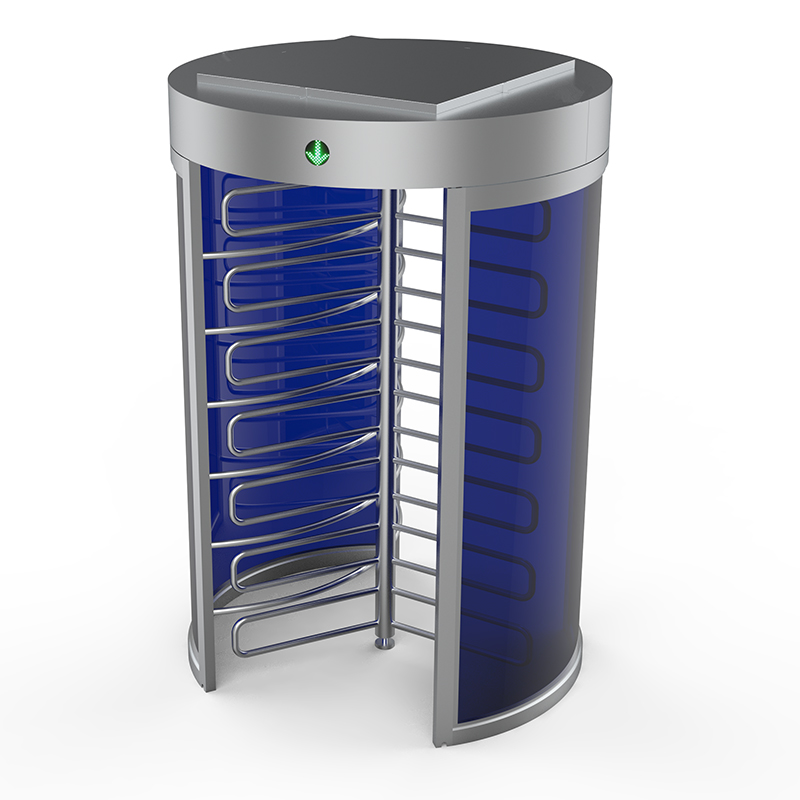

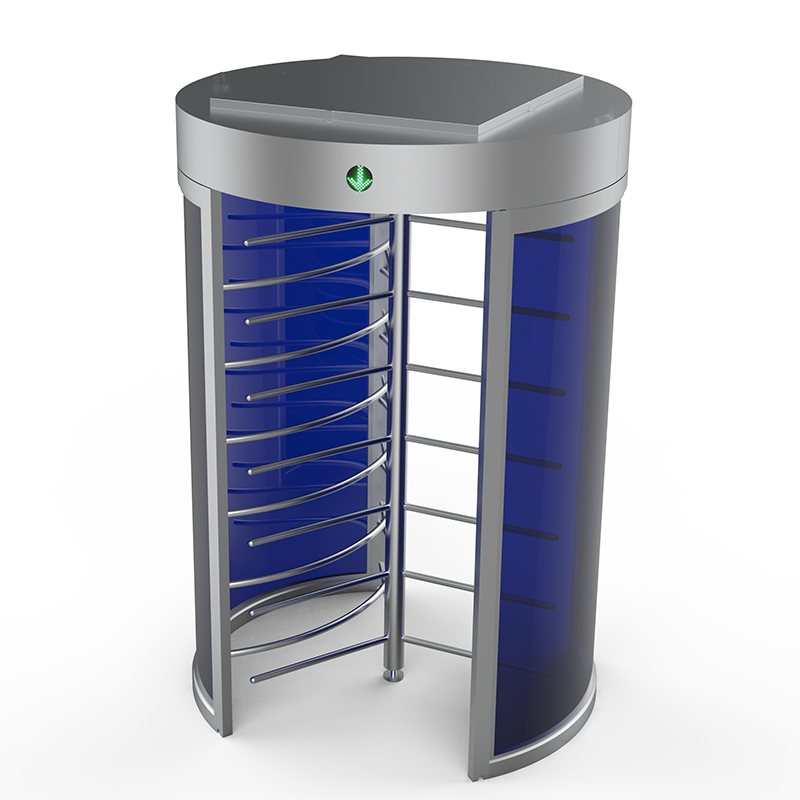

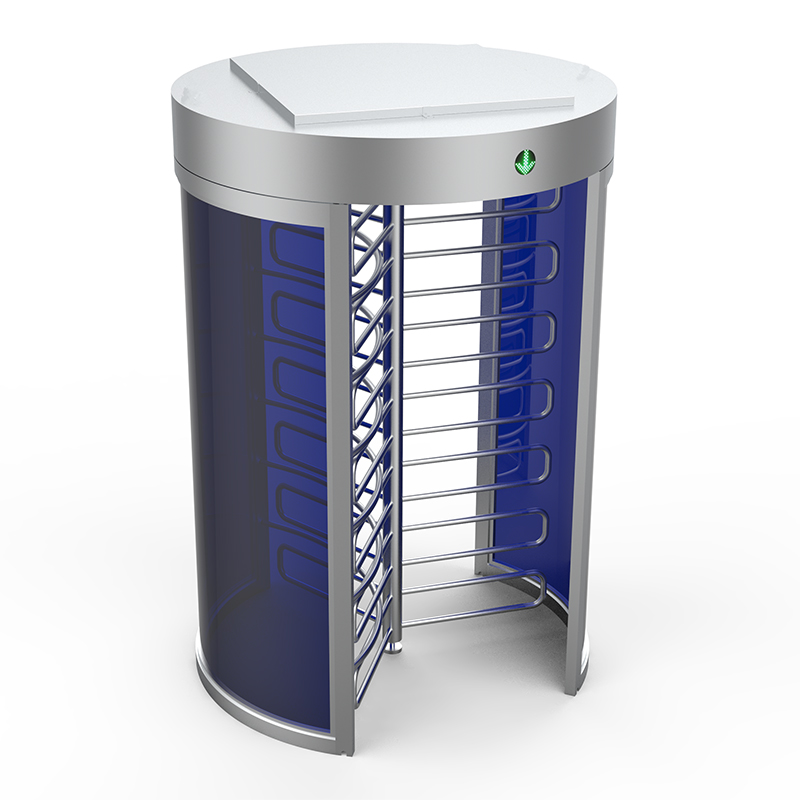

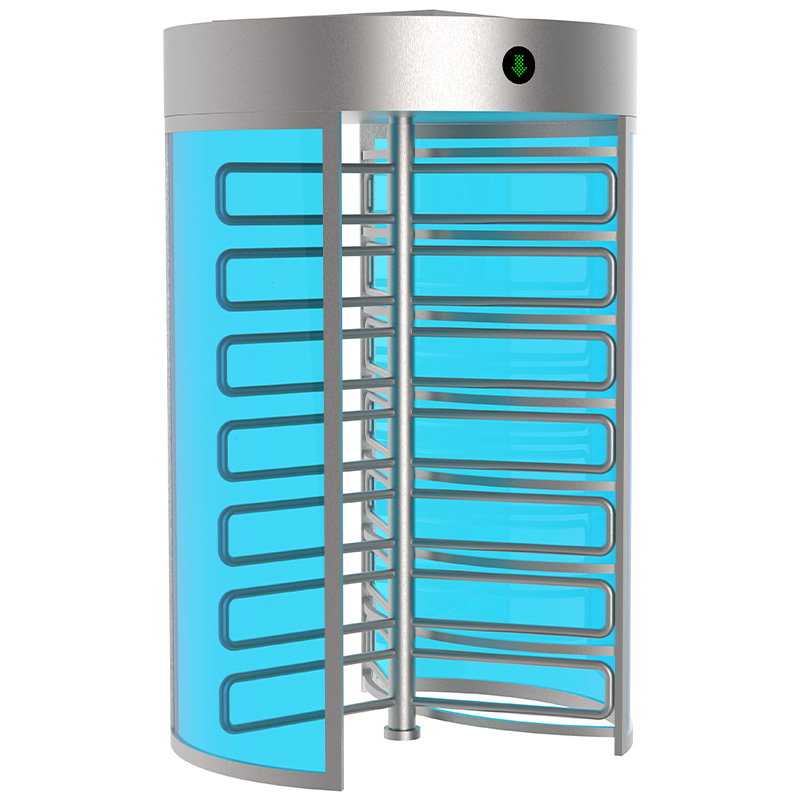

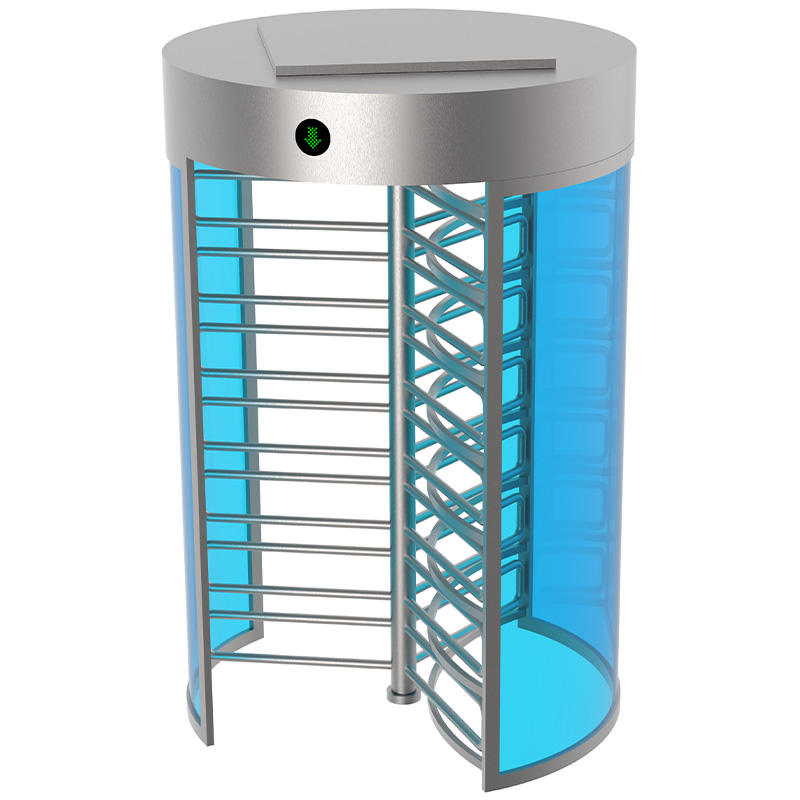

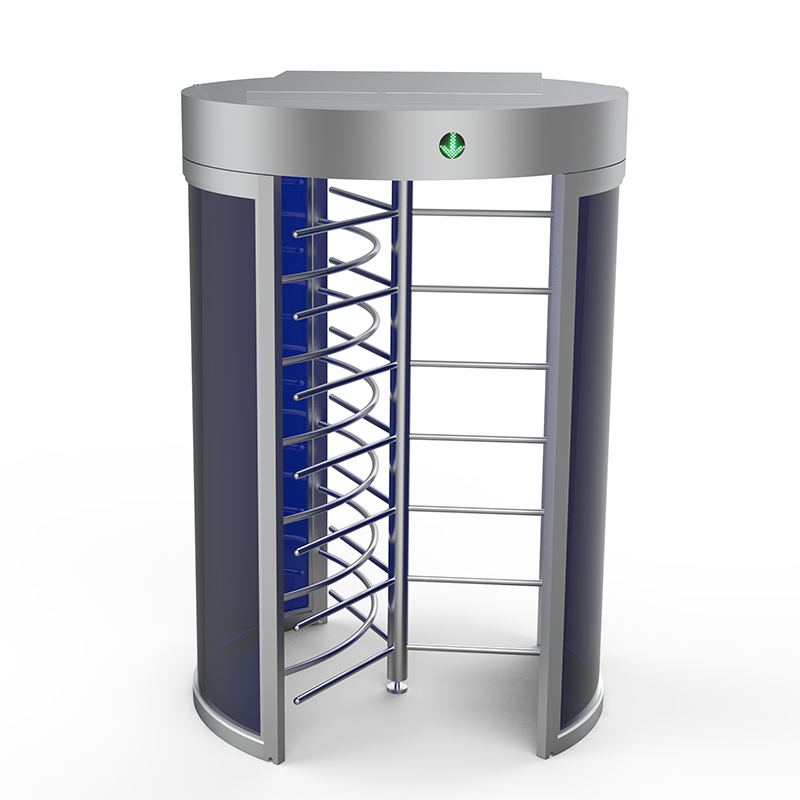

Turnstile Gate: Security Turnstiles | Entrance Turnstile

Turnstile Factory – MairsTurnstile-Online

We can provide OEM and ODM services. All of our products carry a 2 years warranty and durable maintenance and repair support. We also provide biometric devices, such as fingerprint scanner, face recognition camera. RFID card reader, QR code scanner. If you need to integrate these devices on the turnstile gate or have any questions, please request a quote.

Technical Parameter:
1. Size:1520*1520*2300 mm (can be customized)
2. Lane Width: About 650mm (can be customized)
3. Passing speed: 30 person/min
4. Power supply: 110V/220V 50/60Hz
5. Solenoid: DC24V
6. Gate Open Signal: Dry Contact/ Relay
7. Logic Voltage: DC24V
8. Casing Material: 304stainless steel and PC board
9. Reliability of the mechanism: 5 million, no-fault
10. Mechanism with hydraulic damper for shock-absorbing
11. Drive: Semi-automatic Operated
12. Arm length: 600 mm
13. Direction of rotation: Bidirectional
14. Emergency situation: In the event of an emergency or isolation of the power supply the Rotating Door can be configured to Fail-Safe i.e. rotates freely or Fail-Lock
15. Humidity: ≤95%

16. Working temperature:-25℃~60℃
17. Optional Feature: IC/ID reader, Barcode Reader, Face recognition, Fingerprint, other access control equipment, UPS, etc
18. Communication distance: ≤1200 m
19. Communication interface: RS485
20. Size can be customized
21. Time needed for opening: 0.2 s
22. Working environment: Indoors or outdoors
23. Anti tailgating: the turnstile will stay in lock when open around 60degree(3arms) or 45degree(4 arms) so the gate cannot run in reverse direction to preventtail-gating
24. Application range: Community, Factory, Construction site, School, Place of the resort, etc
