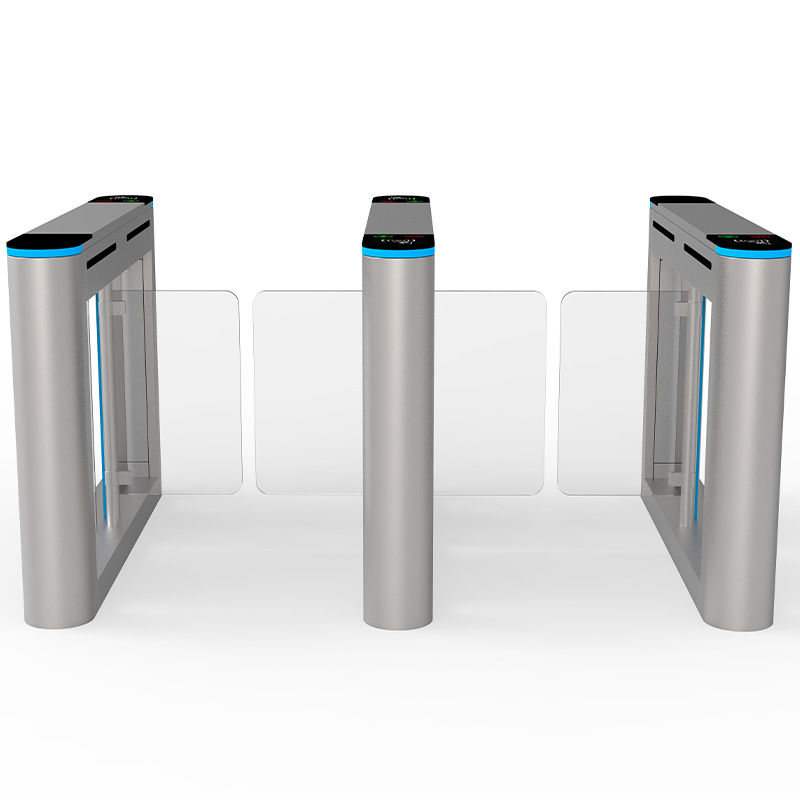

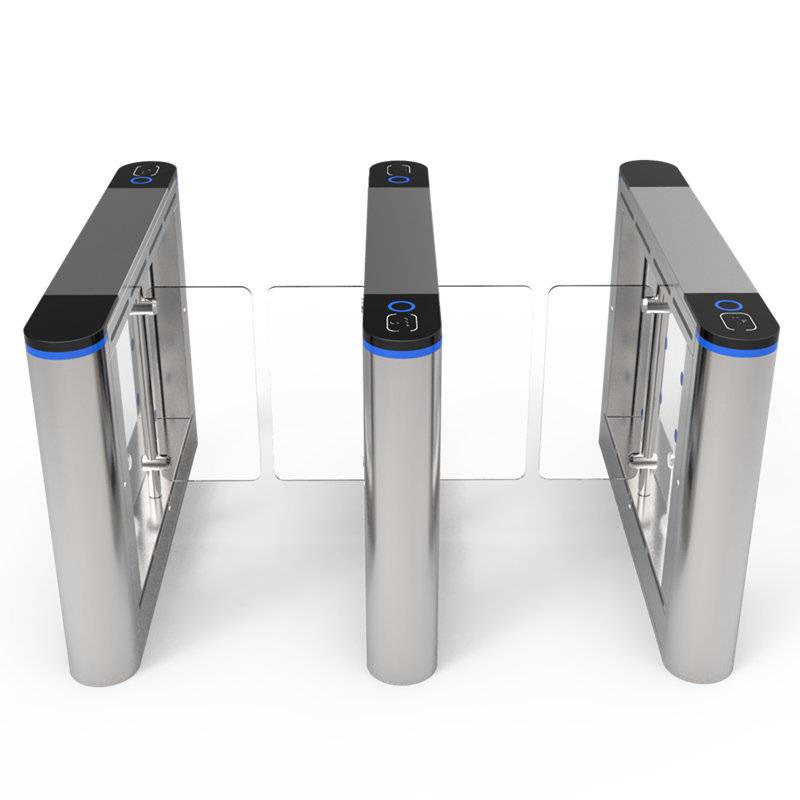

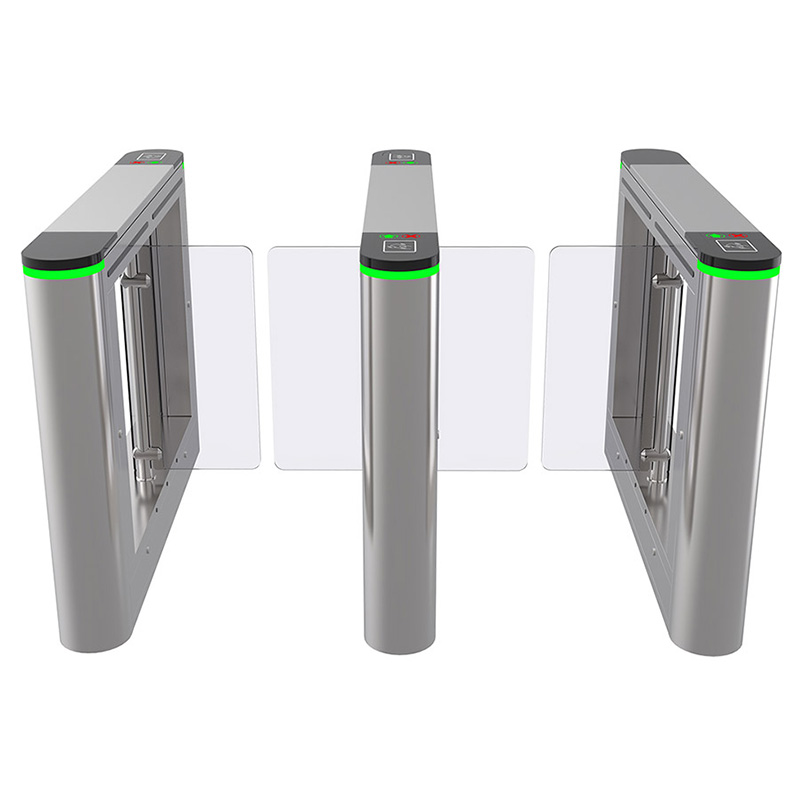

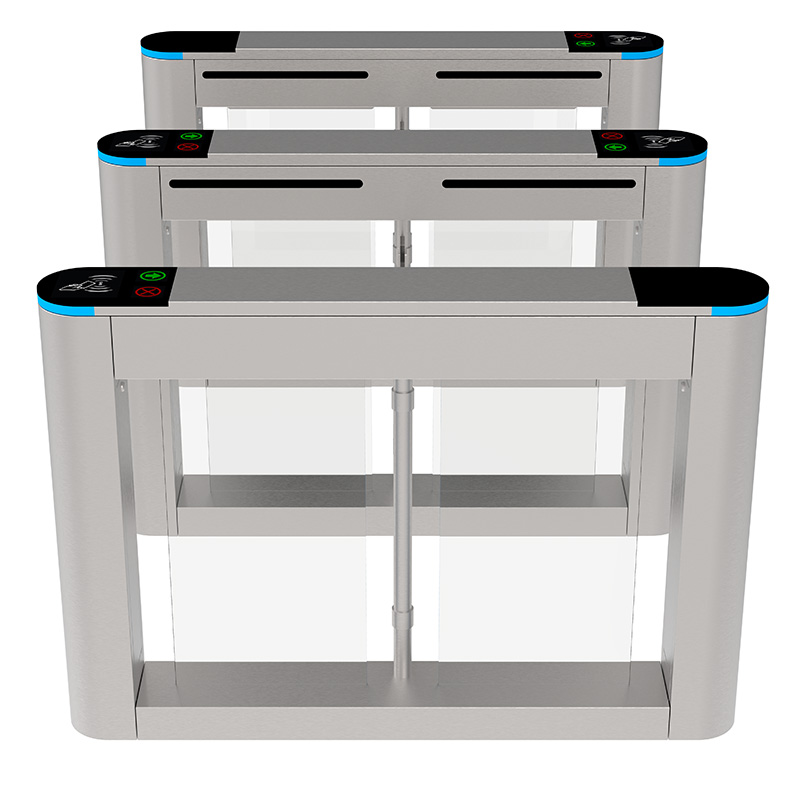

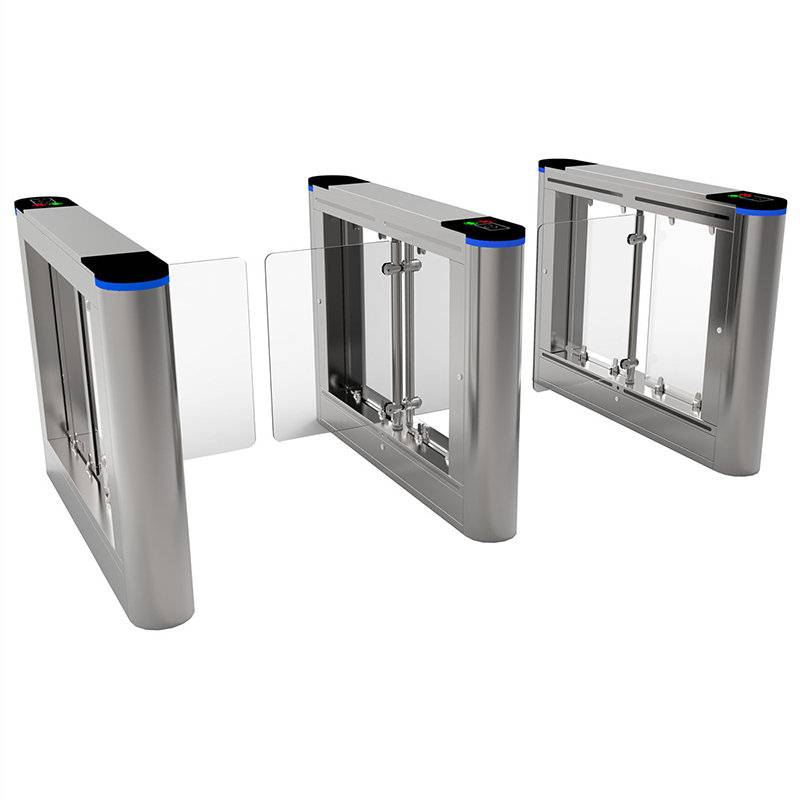

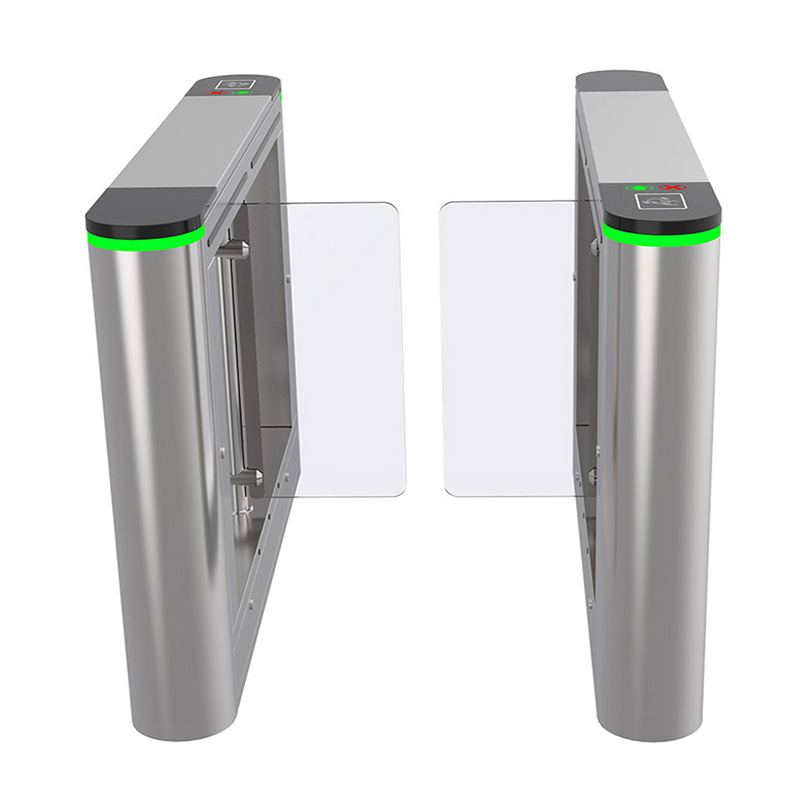

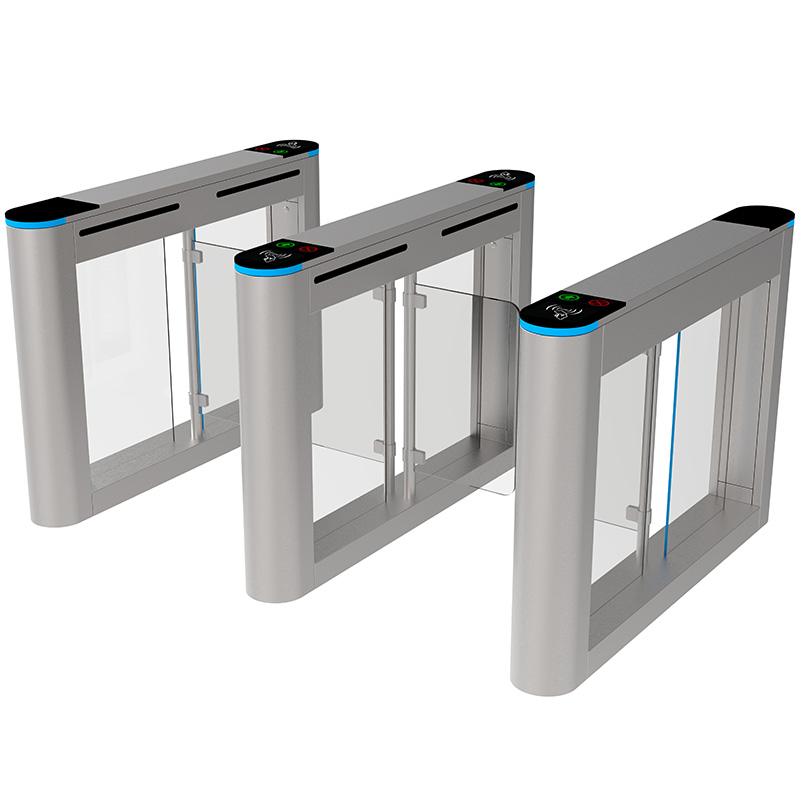

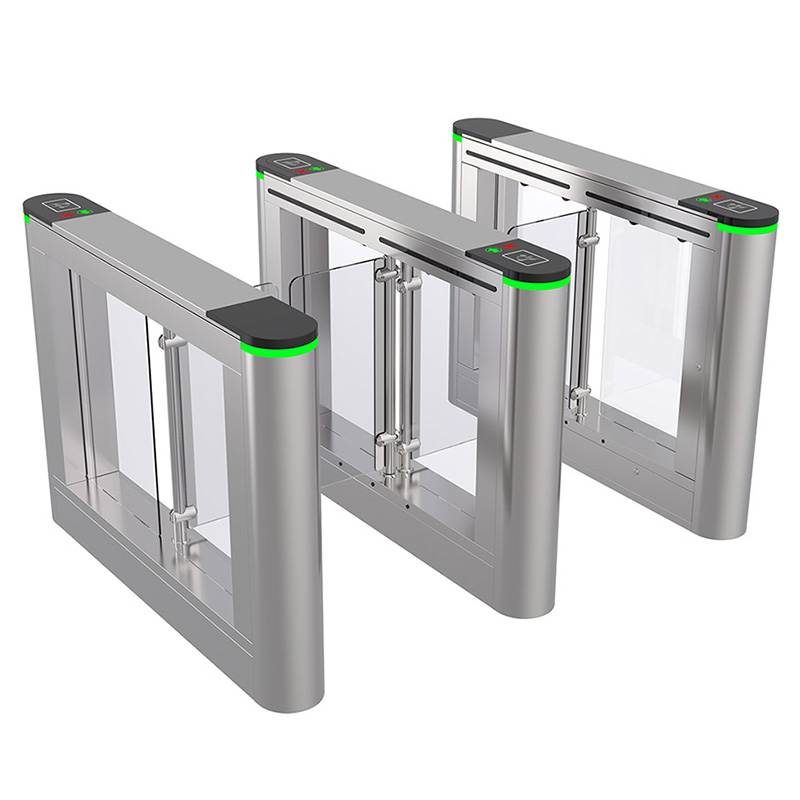

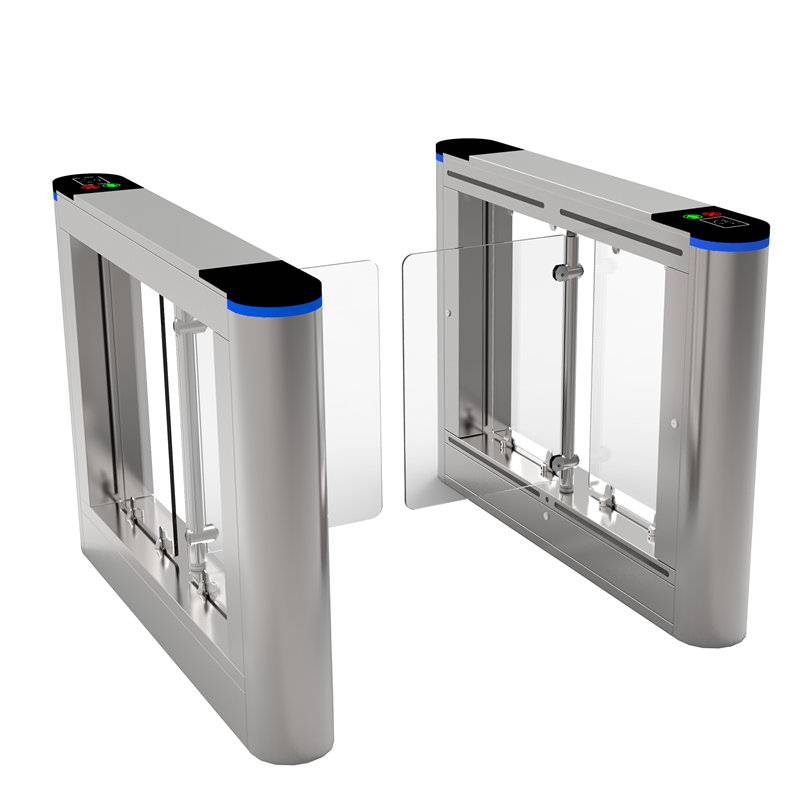

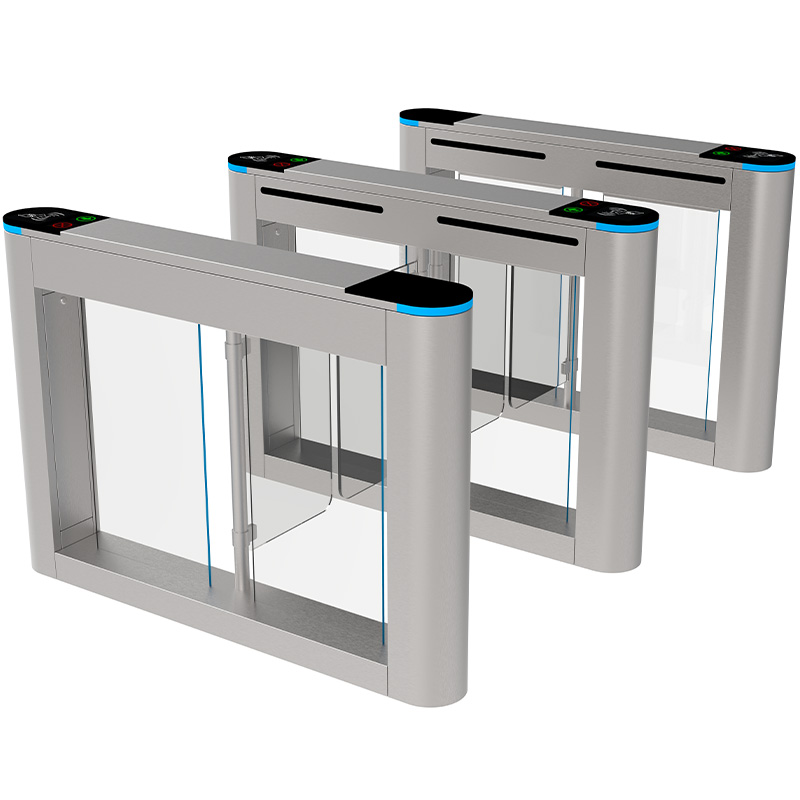

SWING TURNSTILE PEDESTRIAN SWING GATE MT342(INDOOR)

We can provide OEM and ODM services. We have experienced designers who can complete deep customization according to any of your needs. We will provide a series of materials such as 3D renderings, dimensional drawings, etc. as soon as possible.

All of our products carry a 2 years warranty and durable maintenance and repair support. We also provide biometric devices, such as fingerprint scanner, face recognition camera. RFID card reader, QR code scanner. If you need to integrate these devices on the turnstile gate or have any questions, please request a quote.

We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings. Let you have no worries about installation. Please download our corresponding PDF file for specific dimensions and installation dimensions.

Technical Parameter:

1. Size: 1400*180*1000 mm (can be customized)
2. Lane Width: 600 mm(standard) 900 mm( Handicapped )
3. Arm Material: Acrylic
4. Passing speed: 40 person/min
5. Power supply: 110V/220V 50/60Hz
6. Brushless motor
7. Gate Open Signal: Dry Contact/ Relay
8. Driving Motor: 24V
9. Weight: 70 kg/pcs
10. Size and material thickness can be customized
11. Casing Material: 304 stainless steel
12. Reliability of the mechanism: 3 million-5 million, no-fault
13. Anti-hit mechanism, automatically reset when encountering force impact
14. LED light on arms is optional
15. LED on the sideboard is optional

16. Working Direction: Bidirectional/Single directional
17. Emergency situation: open automatically when the electricity is cut off with a capacitor
18. Humidity: ≤90%
19. Working temperature: -20℃~60℃
20. Communication distance: ≤1200 m
21. Communication interface: RS485

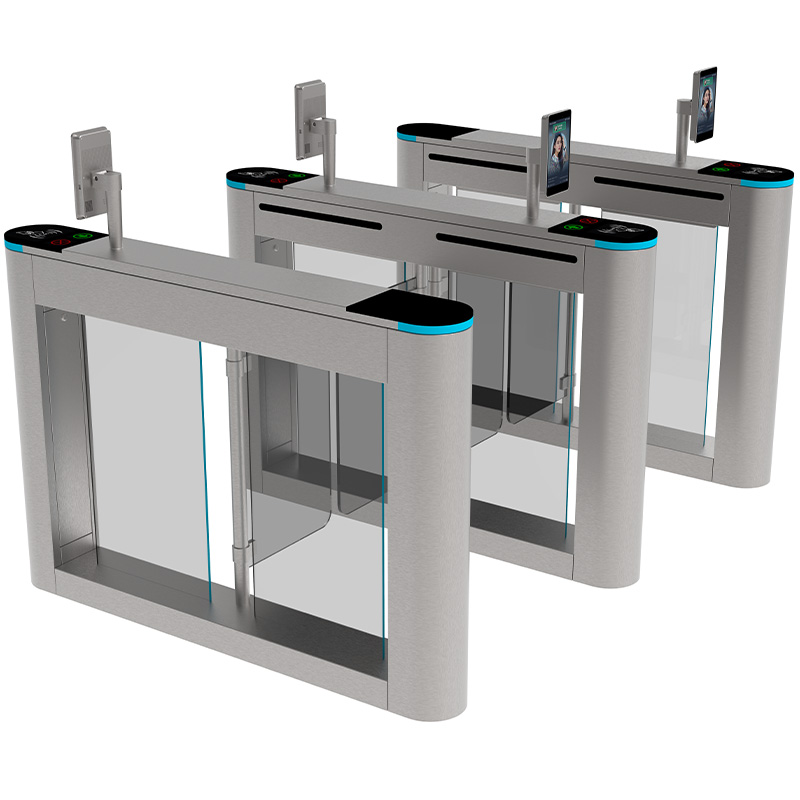

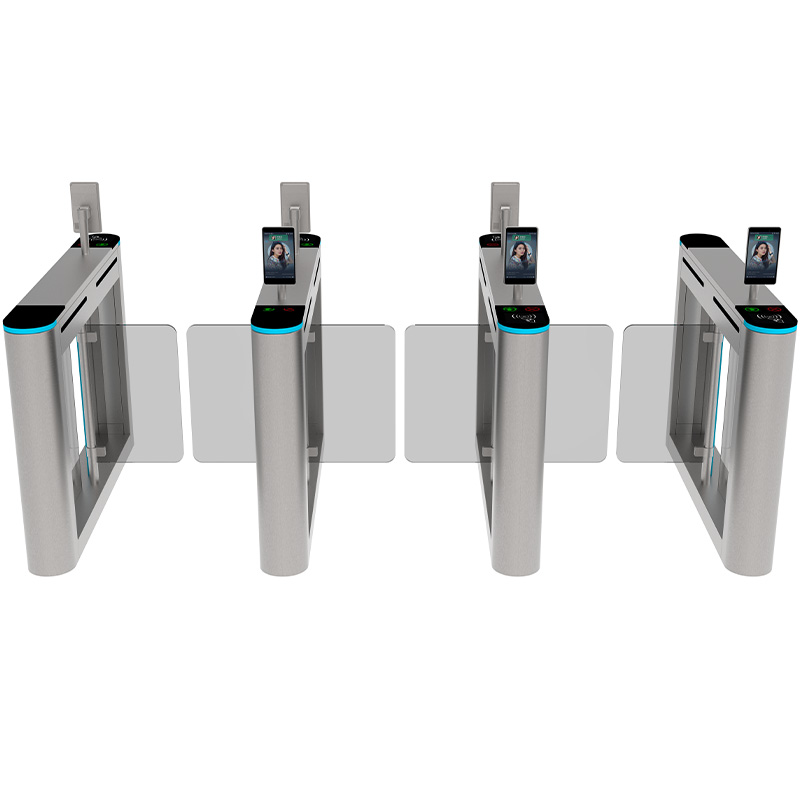

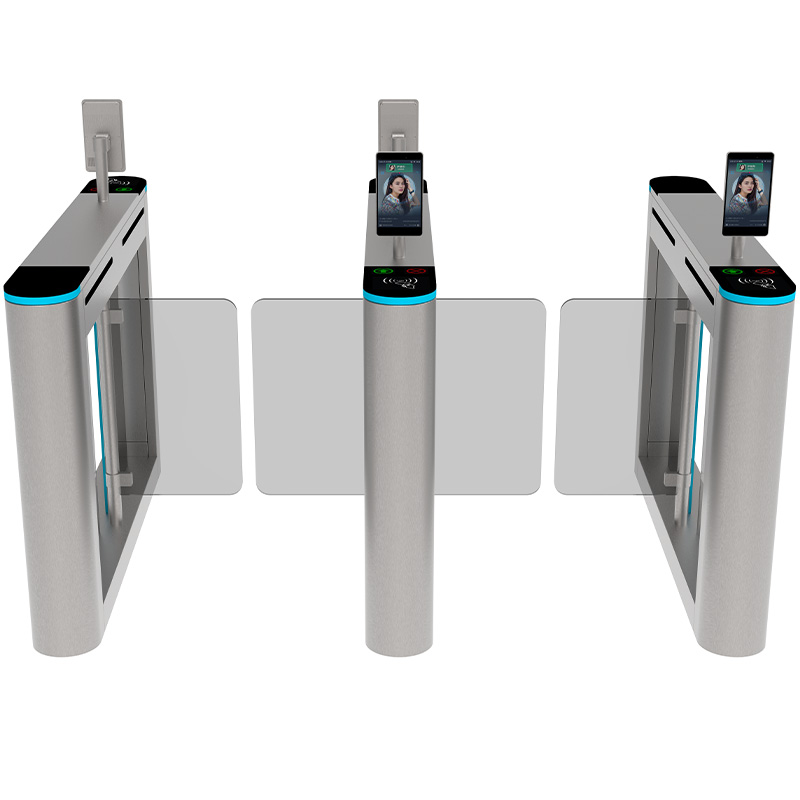

22. Feature: IC/ID reader, Barcode Reader, Face recognition, Fingerprint, other access control equipment, UPS, etc
23. Time needed for opening: 0.2 s
24. Working environment: Indoors
25. Application range: Community, Factory, Construction site, School, Place of the resort, etc

We can provide the entire security access control solution. If you have your own access control system, you can directly use our turnstile gate. If you don’t have one, we also provide a complete security access control solution. Please refer to the video below for details.
