Full height turnstile specifications are critical technical parameters for global business owners, construction contractors, and security system integrators seeking reliable high-security pedestrian access control solutions. As a fully enclosed anti-intrusion access device, a full height security turnstile delivers far superior security compared to traditional half-height turnstiles. Equipped with a 360° rotating structure, professional anti-climb, anti-trespass, and full passage isolation features, it is widely deployed in construction sites, industrial parks, government facilities, prisons, military bases, data centers, and outdoor coastal areas. Understanding accurate full height turnstile specifications is essential for successful project procurement and installation.
Most overseas buyers and engineers search for full height turnstile specifications, full height turnstile dimensions, stainless steel material grades, electrical parameters, safety alarm features, and system integration compatibility before finalizing purchases and project designs. This 2026 updated comprehensive buying guide covers all essential full height turnstile specifications, including mechanical structure sizes, pedestrian passage performance, outdoor weatherproof material standards, electrical drive systems, access control interface compatibility, on-site installation requirements, anti-tailgating safety functions, and custom after-sales solutions. This detailed resource helps you select the best full height turnstile model, avoid project matching errors, and meet international security and fire safety compliance standards.
1. Full Height Turnstile Specifications of Mechanical Dimensions & Structure

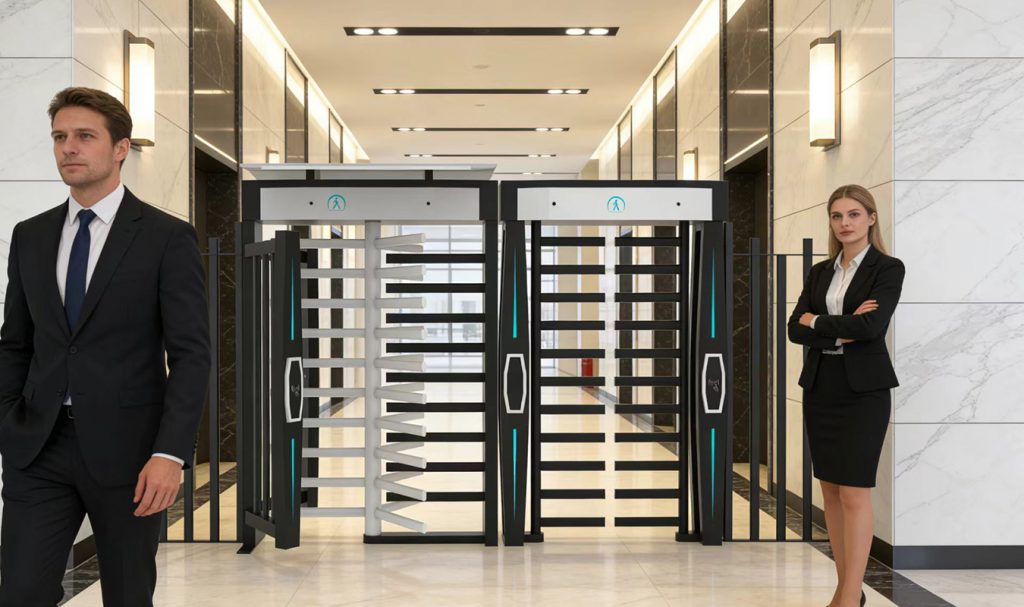

Full height turnstile dimensions are the most frequently checked full height turnstile specifications for on-site construction and layout planning. The vertical fully enclosed structure of standard full height turnstiles eliminates climbing and crossing risks completely, which is a huge advantage over 1200mm tall half-height turnstiles with weak security protection.
- Overall machine size: Standard machine height ranges from 86.6″ to 90.5″(approx. 2200 – 2300mm); length and width can be customized based on single-core and dual-core turnstile structures to fit different passage layouts.
- Standard passage width: 23.6″ to 27.5″ (approx. 600–700mm) standard width for single-person pedestrian passage; 31.4″ to 35.4″ (approx.800–900mm) widened passage for workers with luggage, cargo passage, and wheelchair accessibility
- Rotating arm structure: 3-arm (120° spacing for wider clearance) and 4-arm (90° spacing for tighter security) cross-rotating structures are mainstream industrial-grade designs, with customizable rod diameter and rod length to meet security and passage frequency needs
- Product weight: Standard single-unit weight meets conventional cement ground foundation bearing standards for indoor and outdoor installation
- Installation structure: Supports standard floor expansion screw fixing and customized embedded base installation, adapting to various on-site foundation construction conditions
All our full height turnstile dimension specifications comply with international pedestrian access engineering norms, ensuring stable installation and standardized use for all indoor and outdoor access control projects.
2. Passage Performance Specifications
Passage performance is a core part of full height turnstile specifications, determining daily pedestrian traffic capacity, equipment durability, and scenario adaptability, which is vital for project bidding, scheme design, and long-term operational efficiency.
- Passage direction: Flexible one-way or two-way passage switching, customizable according to site management rules
- Passage speed: Standard traffic efficiency of 25–35 people per minute, perfectly matching high-flow scenarios such as construction site entrances, factory gateways, and public facility access points
- Anti-violence rotation performance: Built-in damping torque control system, effectively resisting forced pushing, violent shaking, and manual damage to extend equipment service life
- Power-off emergency status: Equipped with fire linkage automatic release function, allowing free pedestrian passage after power failure. This key full height turnstile safety specification fully complies with global fire safety and engineering acceptance standards.
3. Material & IP Weatherproof Protection Specifications
Material quality and IP protection ratings are decisive full height turnstile specifications for outdoor, coastal, dusty, and high-corrosion industrial environments, directly determining equipment weather resistance, anti-rust performance, and overall service life.
- Main body material: Industrial 304 stainless steel as standard configuration, suitable for conventional indoor and urban outdoor scenarios; premium 316 stainless steel optional for seaside salt spray, high humidity, and strong corrosive working environments; Carbon Steel / Galvanized often used in industrial areas where aesthetics are less of a concern than strength. These units are usually powder-coated to prevent rus
- Surface treatment technology: Professional wire drawing, mirror polishing, and anti-scratch spray painting customization, achieving excellent anti-rust, anti-corrosion, and aesthetic performance
- IP protection level: Indoor models reach IP44 dustproof and waterproof grade; outdoor upgraded models feature IP54+ enhanced protection, fully resistant to rain, dust, wind, and extreme weather
- Physical security structure: Full-height fully enclosed integrated design, realizing 100% anti-climb and anti-drill protection, ranking the highest security level among all pedestrian turnstile types
4. Electrical & Driving System Specifications
The electrical and driving system is the core foundation of reliable full height turnstile specifications, directly determining equipment operational stability, long-term failure rate, extreme temperature adaptability, and 24-hour continuous working capability for commercial and industrial access control projects.
- Driving motor configuration: Adopts high-quality silent brushless motor and servo motor options, featuring low noise, low wear, stable operation, and ultra-long service life
- Working voltage standard: AC220V external power input, DC12V/24V safe control system, fully compliant with international electrical safety specifications
- Operating temperature range: Supports extreme working temperatures from -20℃ to +60℃, adapting to cold northern regions, high-temperature deserts, and all-season outdoor environments
- Power consumption performance: Low standby power and energy-saving operating mode, suitable for 24-hour uninterrupted operation of security access control systems
5. Interface & Access Control Compatibility Specifications
System compatibility is the most concerned full height turnstile technical specification for security system integrators. Our full height turnstiles reserve full-range universal interfaces to support mainstream global access control protocols and seamless system integration.
- Standard signal interfaces: Built-in dry contact relay, Wiegand 26/34, RS485, and TCP/IP network interfaces for diverse signal docking

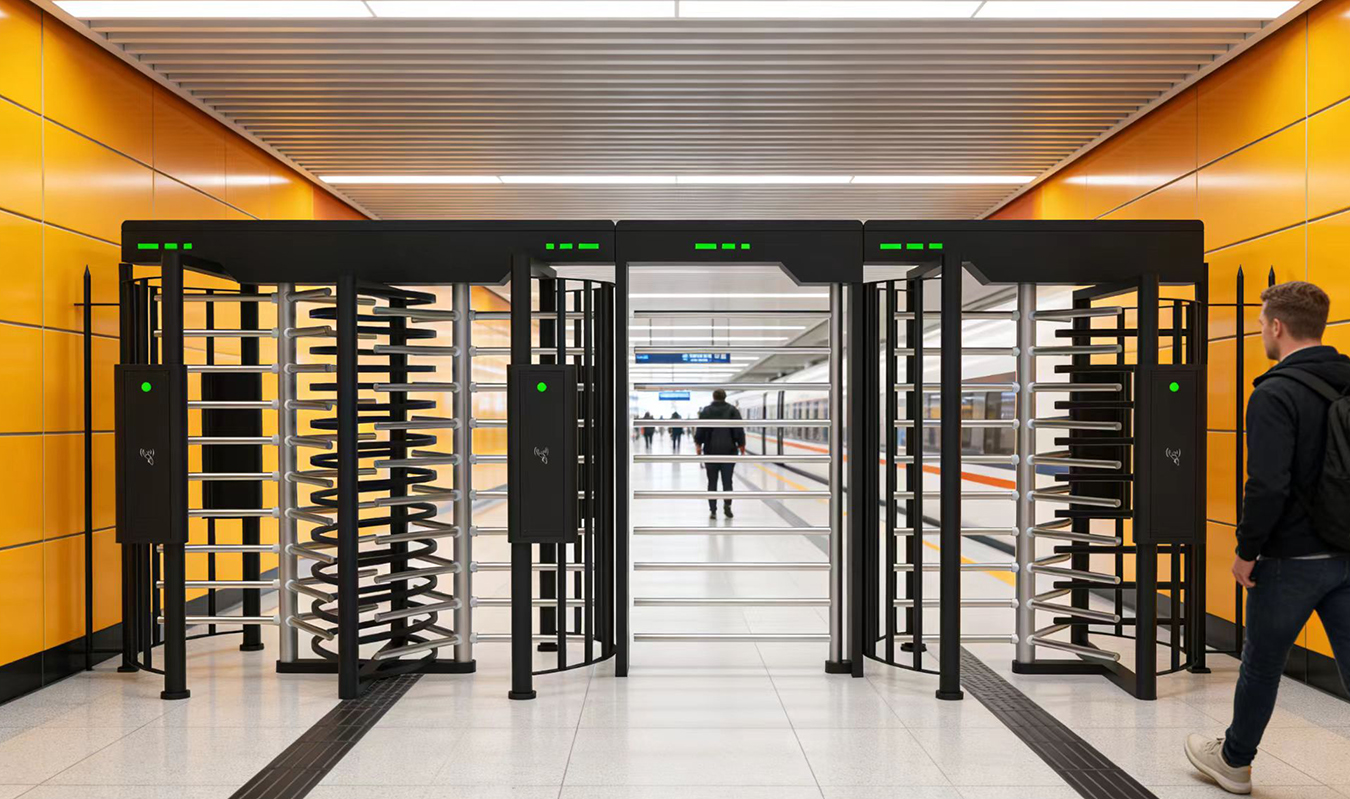

- Compatible recognition devices: Perfectly matches face recognition terminals, IC/ID card readers, fingerprint scanners, QR code scanners, NFC devices, and ID card verification equipment
- Control mode support: Equipped with an independent built-in controller, freely compatible with all mainstream third-party access control systems
- Extended functional interfaces: Supports automatic pedestrian counting, abnormal alarm signal output, and remote cloud monitoring linkage functions
6. Safety & Alarm System Specifications
Intelligent safety and alarm systems are mandatory acceptance indicators for high-security access control projects and form an indispensable core part of official full height turnstile specifications. These features prevent unauthorized entry, tailgating, and equipment damage while ensuring pedestrian safety.
- Precision anti-tailgating function: High-sensitivity infrared induction sensors monitor passing status in real time, automatically triggering alarms for tailgating and unauthorized following behavior
- Anti-reverse & anti-forced entry protection: Automatic locking for reverse passage and real-time alarm for forced rotation damage to prevent illegal intrusion
- Humanized anti-pinch protection: Intelligent infrared obstacle detection, realizing immediate stop and rebound to avoid pedestrian pinching accidents
- Visual LED indicator prompt: Clear pass/forbidden status LED lights, guiding pedestrian passage and reducing operation confusion
- Fire emergency linkage function: Reserved dedicated fire signal interface, automatic unlocking and free full passage in emergency fire situations
7. Installation & Environmental Adaptation Specifications
Professional installation and environmental adaptation full height turnstile specifications help construction teams complete rapid on-site deployment and avoid rework caused by mismatched site conditions.
- Applicable working environments: Dual-purpose indoor and outdoor rainproof design, adaptable to dusty factories, high-temperature open sites, low-temperature cold areas, and coastal salt spray corrosion environments
- On-site ground requirements: Suitable for standard solid cement ground installation, with support for customized embedded foundation base reinforcement
- Standard wiring norms: Separated strong and weak current wiring design, with reserved standard wiring holes for convenient on-site construction and later maintenance
8. Customization & After-Sales Service Specifications
We provide personalized customization and standardized after-sales full height turnstile specifications to meet differentiated project and market demands for global clients.
- Appearance customization: Custom body color spray painting and laser brand LOGO engraving to match the project’s overall style
- Channel combination solutions: Custom single-core, dual-core, and multi-channel combined layouts, supporting matching disabled pedestrian access doors
- Global shipping mode: Integral whole-machine delivery and split bulk packaging options, supporting overseas full container shipment and international logistics transportation
- Warranty & technical support: Official long-term warranty service, complete wearing parts list, and lifelong professional technical after-sales support
Full Height Turnstile Specifications FAQ
We summarize high-frequency questions searched by global buyers about full height turnstile specifications to solve your product selection and project matching confusion quickly:
Q1: Can full height turnstiles be used outdoors in rainy weather? A: Absolutely yes. Our IP54+ upgraded full height turnstiles feature professional rainproof, dustproof, and weather-resistant performance, supporting long-term stable outdoor deployment in all weather conditions.
Q2: Do full height turnstiles lock after power failure? Are they compliant with fire codes? A: Standard models adopt a power-off automatic unlocking design for free pedestrian passage, fully compliant with international fire safety codes and project acceptance standards.
Q3: Can full height turnstiles integrate with existing face access control systems? A: Yes. With universal international access control protocols and rich reserved interfaces, our full height turnstiles can seamlessly dock with almost all third-party face recognition and access control devices.
Q4: Which material is better, 304 or 316 stainless steel for seaside construction sites? A: 316 stainless steel is highly recommended for coastal salt spray environments, with superior anti-corrosion performance to prolong equipment service life greatly.
Q5: What passage width is suitable for wheelchairs and large luggage? A: The customized 800–900mm widened passage full height turnstile specifications are the ideal choice for wheelchair access and heavy luggage passage scenarios.
Q6: Do full height turnstiles support anti-climb and anti-tailgating functions? A: The fully enclosed physical structure achieves complete anti-climb protection, paired with a high-precision infrared anti-tailgating alarm function, providing top-tier security for commercial and industrial access control.
Final Words & Professional Inquiry Guide
Selecting precise and standardized full height turnstile specifications is the key to stable, long-lasting, and code-compliant operation for all industrial and commercial security access control projects. Whether you need standard product parameter sheets, custom-sized turnstile solutions, outdoor anti-corrosion upgraded configurations, or professional system integration technical support, our expert team provides one-stop tailored services for global clients across all industries.
Contact us now to download a free detailed full height turnstile specifications PDF sheet, get a customized project quotation, and receive professional turnstile selection advice for your upcoming security access projects!
