8” Face Recognition Temperature Measurement

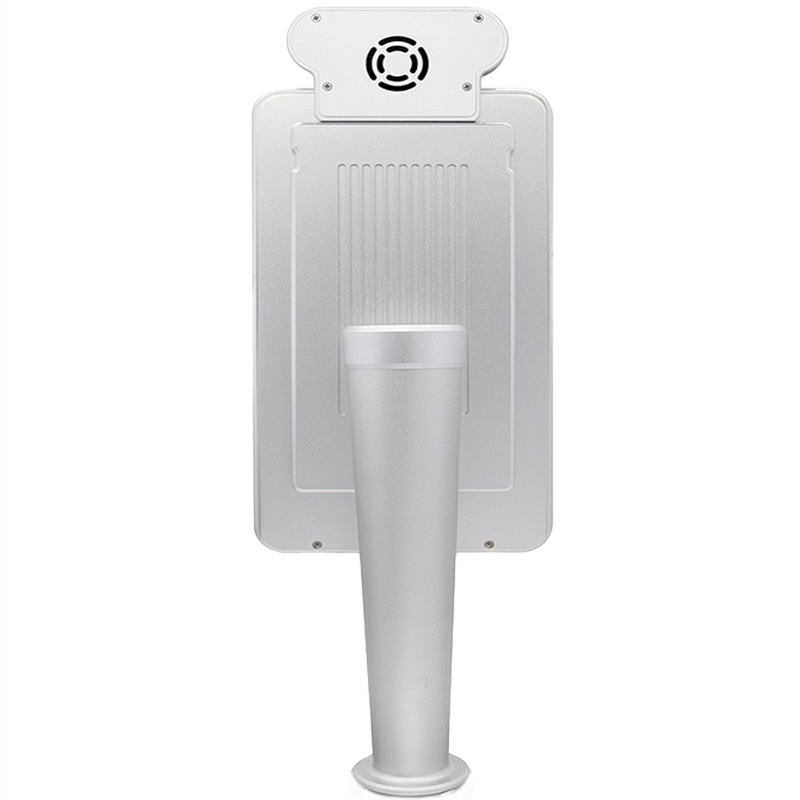

This 8” Face Recognition Temperature Measurement Terminal MT-F808 is a high-performance embedded binocular temperature-measuring face recognition terminal. The terminal integrates the functions of off-line face recognition, temperature detection, mask recognition, identity verification, on-site face collection, blacklist early-warning, photo taken after passing, active object detection.

It adopts WDR HD face recognition camera, which is fully adapted to harsh environments such as strong light, backlight, and weak light, with characteristics of fast recognition speed, high accuracy, and large list storage capacity. Mairs offers the best face recognition temperature measurement terminal for turnstile gates.

These face recognition cameras can be well integrated into our security turnstiles, which is a perfect combination. If you have special requirements for these cameras, we can also customize special functions according to your special needs. Of course, if you need more detailed information or our product manual, or want to customize a face recognition camera to meet your needs, please contact us directly.

Technical Parameter:

Display: 8 inch IPS screen
Temp Sensor: Thermal imaging infrared temperature sensor
Temperature: Range: 35~42℃
Detect distance: 0.4 m~0.7 m
Lens: focal length 1.8 mm, Field of View:118°
Dynamic Range: ≥100 dB
S/N Ratio: ≥43 dB(AGC OFF)
White balance: Auto, indoor, outdoor, sodium lamp mode, manual
Digital noise reduction: Support DNR,3DNR
Day and night mode: FIxed Color
Number of face bases: 20,000 sheets
Recognition speed: ≤300 ms
Live detection: support
Mask detection: support
Body temperature: support
Operation system: Android 7.1 RK3288

Product Characters:

Built-in non-contact high-precision thermal imaging module + live detection in one
Temperature detection range 35℃~42℃,Precision±0.3℃
Support human body temperature overlay、picture overlay
Support body temperature detection
Supports mask detection
Built-in FACE ++ deep learning face recognition algorithm,Stable and reliable
Support 50,000 face database
300 ms fast identification
8inch HD LCD display
Local alarm output after abnormal temperature
Face recognition, temperature detection, and mask recognition, Freely configure multiple usage modes
Ultra-thin metal shell. face recognition temperature measurement.
Can record identification information and temperature information, save traceability
Excellent environmental adaptability, adapt to low light and strong backlight, support automatic face exposure
Support Wigan protocol, can directly drive access control and control various gates
Rich hardware interface, integrated 100M Ethernet interface, audio interface, Wiegand interface, relay interface, TF card, USB, and other interfaces
Support 2D, 3D digital noise reduction
Low power consumption, mainboard power consumption is as low as 5 watts
Support the secondary development of device-side application software
Support various software and hardware customize
